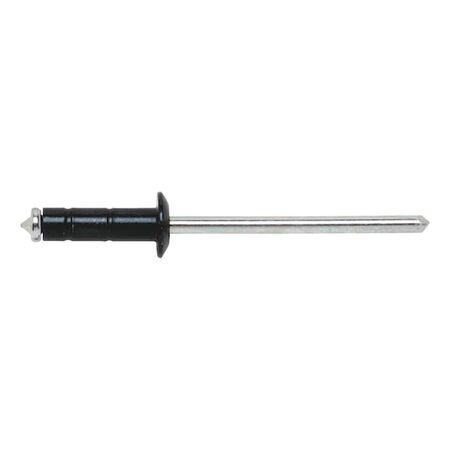

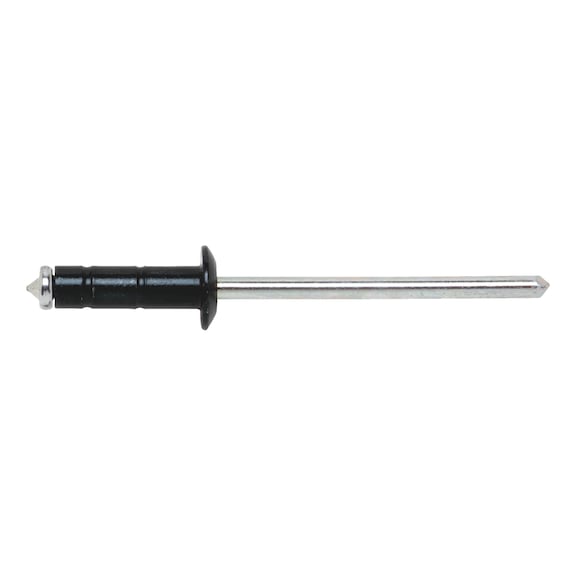

Blind Rivet Flat Head | Aluminium Sleeve | Dome Head Design | 50 PCS | by Wurth
Blind rivet flat head with an aluminium sleeve and dome head design, perfect for construction and manufacturing applications. With a nominal diameter of 3.2 mm and a length of 11 mm, these multi-use rivets are ideal for fastening materials from one side, ensuring secure and reliable connections in building-authority approved projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blind Rivet Flat Head | Aluminium Sleeve | Dome Head Design | 50 PCS | by Wurth
Brand: Wurth
SKU: 915593211
Alternatively Known As: Blind rivet, Pop rivet, Flat head rivet, Aluminium blind rivet, Dome head rivet
Technical Specifications
- Nominal diameter x length (d1 x l1): 3.2 x 11 mm
- Min./max. grip range: 4.0-8.0 mm
- Head diameter (dk): 6.4 mm
- Head height (k1): 1.1 mm
- Min./max. drill hole diameter: 3.3-3.5 mm
- Shear-fracture load: 750 N
- Tensile fracture load: 820 N
- Material of sleeve: Aluminium
- Material of mandrel: Steel
- Surface of the sleeve: Black anodised
- Surface of the mandrel: Zinc plated
- Standards: WN 915
- RoHS-compliant: Yes
- Head type: Dome head
- Mandrel diameter (dm): 1.8 mm
- Dimensions (H x L x W): 1.1mm x 11mm x 6.4mm
- Weight: 0.05 kg
Key Features
- Sleeve made of aluminium AlMg 2.5 with black anodised finish
- Pin made of galvanised steel with blue passivated (A2K) surface
- Multi-use blind rivet with building-authority approval
- Nominal diameter 3.2 mm and length 11 mm
- Dome head type for secure fastening
Professional Installation Requirements
- Installation requires appropriate blind rivet tools and should be performed by trained personnel to ensure secure fastening.
Applications
- Multi-use blind rivet suitable for various construction and manufacturing applications
- Ideal for fastening materials where access is only possible from one side
- Used in building-authority approved projects requiring reliable fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable materials extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Blind Rivet Flat Head 50 PCS is available now for immediate purchase. Ideal for construction, manufacturing, and repair applications requiring reliable blind riveting.
