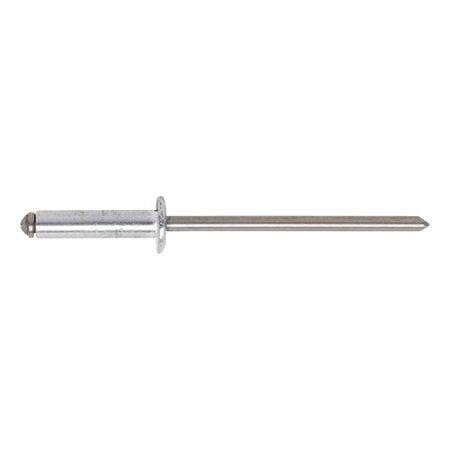

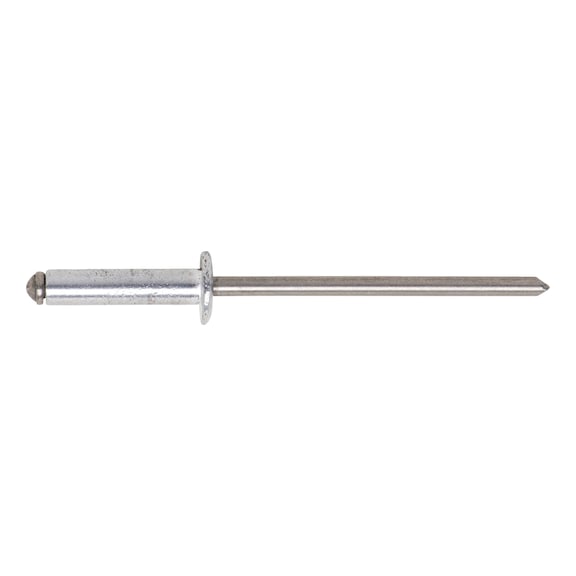

Blind Rivet Flat Head | Multi-Use Aluminium | Galvanised Steel Mandrel | @Pack of 100 | by Wurth
Blind rivet flat head designed for versatile applications in automotive, construction, and manufacturing. Made with a lightweight aluminium sleeve and a galvanised steel mandrel, these rivets ensure secure fastening even in hard-to-reach areas. Ideal for joining metal sheets and plastics, they offer durability and reliability for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blind Rivet Flat Head | Multi-Use Aluminium | Galvanised Steel Mandrel | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 937333323
Alternatively Known As: Flat Head Blind Rivet, Aluminium Blind Rivet, Multi-use Blind Rivet
Technical Specifications
- Nominal diameter x length: 3.2 x 12.8 mm
- Min./max. grip range: 7.95-9.53 mm
- Head diameter: 6.3 mm
- Head height: 1.0 mm
- Shear-fracture load: 0.756 kN
- Tensile fracture load: 0.979 kN
- Material of sleeve: Aluminium
- Material of mandrel: Steel
- Surface of sleeve: Plain
- Surface of mandrel: Zinc plated
- Drill hole diameter: 3.3 mm
- Mandrel diameter: 1.93 mm
- RoHS-compliant: No
- Dimensions (H x L x W): 1.0mm x 12.8mm x 6.3mm
- Weight: 0.1 kg
Key Features
- Multi-use blind rivet
- Sleeve made of aluminium
- Mandrel made of galvanised steel with blue passivation (A2K)
- Plain surface on sleeve and zinc plated surface on mandrel
Professional Installation Requirements
- Installation requires appropriate blind rivet tools and should be performed by trained personnel to ensure secure fastening.
Applications
- Suitable for fastening materials in automotive, construction, and manufacturing industries
- Ideal for joining metal sheets, plastics, and other materials where access is only possible from one side
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Aluminium sleeve is lightweight and recyclable
- Durable materials reduce the need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
Wurth Blind Rivet Flat Head 100 PCS is available for immediate purchase, ideal for industrial and construction fastening applications.
