Trade Discount 21%

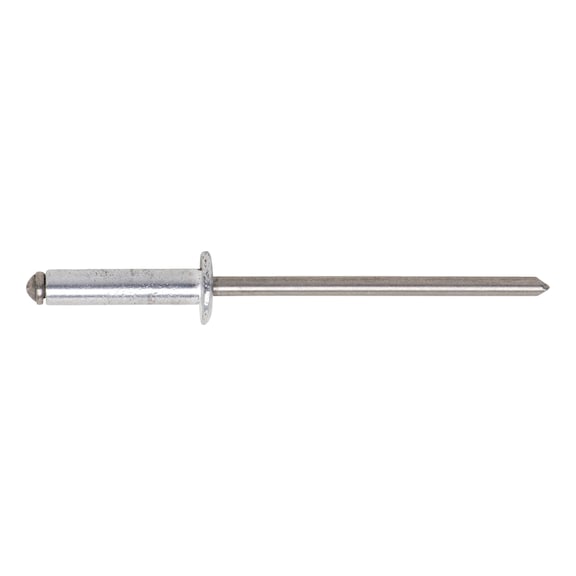

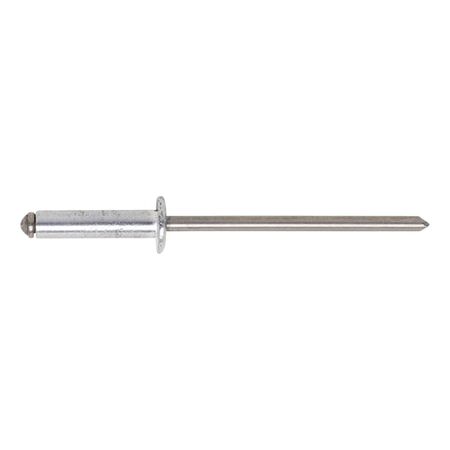

Blind Rivet Flat Head | Multi-Use Aluminium | Galvanised Steel Mandrel | @Pack of 100 | by Wurth
Blind rivet flat head designed for versatile applications in automotive, construction, and manufacturing. Made with a lightweight aluminium sleeve and a galvanised steel mandrel, these rivets ensure secure fastening even in hard-to-reach areas. Ideal for joining metal sheets and plastics, they provide durability and reliability for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blind Rivet Flat Head | Multi-Use Aluminium | Galvanised Steel Mandrel | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 937333324
Alternatively Known As: Flat Head Blind Rivet, Aluminium Blind Rivet, Multi-use Blind Rivet
Technical Specifications
- Nominal diameter x length: 3.2 x 14.5 mm
- Min./max. grip range: 9.55-11.10 mm
- Head diameter: 6.3 mm
- Head height: 1.0 mm
- Shear-fracture load: 0.756 kN
- Tensile fracture load: 0.979 kN
- Material of sleeve: Aluminium
- Material of mandrel: Galvanised steel, blue passivated (A2K)
- Surface of sleeve: Plain
- Surface of mandrel: Zinc plated
- Drill hole diameter: 3.3 mm
- Mandrel diameter: 1.93 mm
- RoHS-compliant: No
- Dimensions (H x L x W): 1.0mm x 14.5mm x 6.3mm
- Weight: 0.1 kg
Key Features
- Multi-use blind rivet
- Sleeve made of aluminium
- Mandrel made of galvanised steel with blue passivation (A2K)
- Plain surface on sleeve and zinc plated surface on mandrel
Professional Installation Requirements
- Installation requires appropriate blind rivet tools and should be performed by trained personnel to ensure secure fastening.
Applications
- Suitable for fastening materials in automotive, construction, and manufacturing industries
- Ideal for joining metal sheets, plastics, and other materials where access is limited to one side
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Aluminium sleeve is lightweight and recyclable
- Durable materials reduce the need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Blind Rivet Flat Head 100 PCS is available for immediate purchase, ideal for industrial and construction fastening applications.
