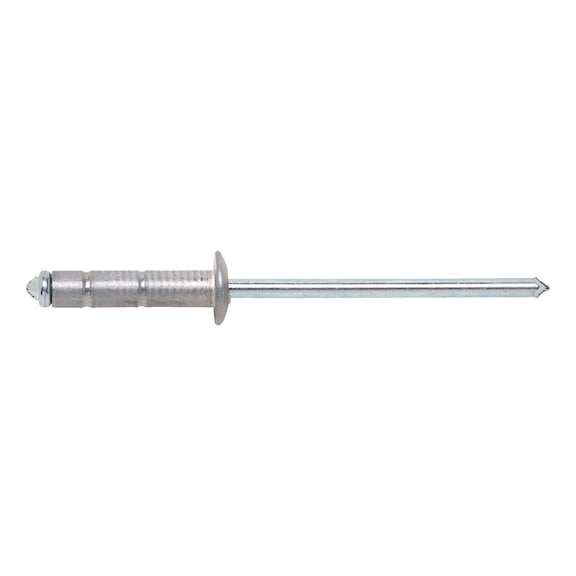

Blind Rivet Flat Head RIV MHD ALU ST A2K | 3.2 x 8 mm | Aluminium & Galvanised Steel | @Pack of 50 | by Wurth
Blind rivet flat head RIV MHD ALU ST A2K is designed for versatile fastening applications, featuring a 3.2 x 8 mm size and a robust aluminium sleeve with a galvanised steel mandrel. Ideal for construction, automotive, and machinery assembly, this rivet ensures a clean, secure closing with high tensile strength and shearing resistance, making it perfect for both professional and DIY projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blind Rivet Flat Head RIV MHD ALU ST A2K | 3.2 x 8 mm | Aluminium & Galvanised Steel | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 9155328
Alternatively Known As: Blind rivet, Pop rivet, Flat head rivet, Aluminium blind rivet, Multi-use blind rivet
Technical Specifications
- Nominal diameter x length (d1 x l1): 3.2 x 8 mm
- Min./max. grip range: 0.5-4.8 mm
- Head diameter (d k): 6.4 mm
- Head height (k1): 1.1 mm
- Min./max. drill hole diameter: 3.3-3.5 mm
- Shear-fracture load: 750 N
- Tensile fracture load: 1000 N
- Material of sleeve: Aluminium
- Material of mandrel: Steel
- Surface of the sleeve: Plain
- Surface of the mandrel: Zinc plated
- Standards: WN 915
- RoHS-compliant: Yes
- Head type: Dome head
- Mandrel diameter (d m): 1.8 mm
- Dimensions (H x L x W): 1.1mm x 8mm x 6.4mm
- Weight: 0.01 kg
Key Features
- Sleeve made of AI-Mg aluminium
- Mandrel made of galvanised steel, blue passivated (A2K)
- Multi-use blind rivet with high-quality rivet connection
- Clean, secure closing with reliable patented rivet mandrel locking mechanism
- Consistently high tensile strength and shearing resistance
- Impact-resistant and impermeable to spray water
- Significant shank expansion for maximum borehole filling, even in over-drilled boreholes
- Large clamping length range reduces the need for multiple types
- Fewer sources for defects in installation
- General technical approval Z-14.4 for 4.8 mm diameter
Professional Installation Requirements
- Installation requires appropriate blind rivet tools and should be performed by trained personnel to ensure secure fastening.
Applications
- General fastening applications requiring blind rivets
- Construction and building projects
- Metal sheet joining and clamping
- Automotive and machinery assembly
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable materials reduce need for frequent replacements
- Aluminium sleeve is recyclable
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Blind Rivet Flat Head RIV MHD ALU ST A2K 05 48 32X8 50 PCS is available for immediate purchase, ideal for construction, manufacturing, and repair applications.
