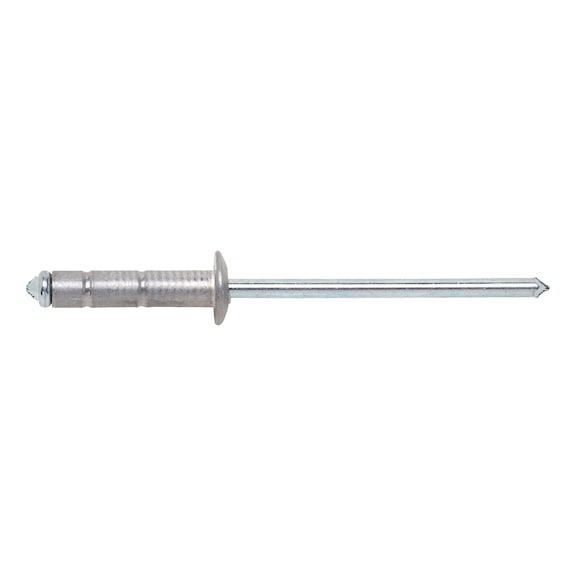

Blind Rivet Flat Head RIV MHD ALU ST A2K | 4 x 13 mm | Aluminium & Galvanised Steel | High Tensile Strength | @Pack of 50 | by Wurth
Blind rivet flat head RIV MHD ALU ST A2K is designed for robust fastening in construction, automotive, and industrial applications. With a nominal diameter of 4 x 13 mm and a grip range of 4.0-9.6 mm, these rivets ensure a clean, secure closure thanks to their patented locking mechanism. Made from durable aluminium and galvanised steel, they offer high tensile strength and shearing resistance, making them ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blind Rivet Flat Head RIV MHD ALU ST A2K | 4 x 13 mm | Aluminium & Galvanised Steel | High Tensile Strength | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 91554013
Alternatively Known As: Flat Head Blind Rivet, Aluminium Blind Rivet, Multi-use Blind Rivet, Dome Head Rivet
Technical Specifications
- Nominal diameter x length: 4 x 13 mm
- Min./max. grip range: 4.0-9.6 mm
- Head diameter: 8.0 mm
- Head height: 1.4 mm
- Min./max. drill hole diameter: 4.1-4.3 mm
- Shear-fracture load: 1200 N
- Tensile fracture load: 1600 N
- Material of sleeve: Aluminium
- Material of mandrel: Steel
- Surface of the sleeve: Plain
- Surface of the mandrel: Zinc plated
- Head type: Dome head
- Mandrel diameter: 2.2 mm
- Standards: WN 915
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.4mm x 13mm x 8mm
- Weight: 0.02 kg
Key Features
- Sleeve made of aluminium (AI-Mg)
- Mandrel made of galvanised steel, blue passivated (A2K)
- Multi-use blind rivet with high-quality rivet connection
- Clean, secure closing with patented rivet mandrel locking mechanism
- Consistently high tensile strength and shearing resistance
- Impact-resistant and impermeable to spray water
- Significant shank expansion for maximum borehole filling, even in over-drilled boreholes
- Large clamping length range reduces the number of rivet types needed
- General technical approval Z-14.4 for 4.8 mm diameter
Professional Installation Requirements
- Installation requires appropriate blind rivet tools and should be performed by trained personnel to ensure secure fastening.
Applications
- Construction and building fastening
- Sheet metal assembly
- Automotive and machinery assembly
- General industrial fastening requiring strong, reliable blind rivets
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable materials reduce need for frequent replacements
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Wurth Blind Rivet Flat Head RIV MHD ALU ST A2K 4x13mm 50 PCS is available for immediate purchase, ideal for construction, automotive, and industrial fastening applications.
