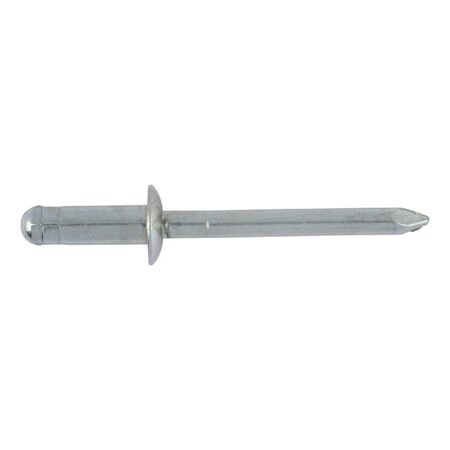

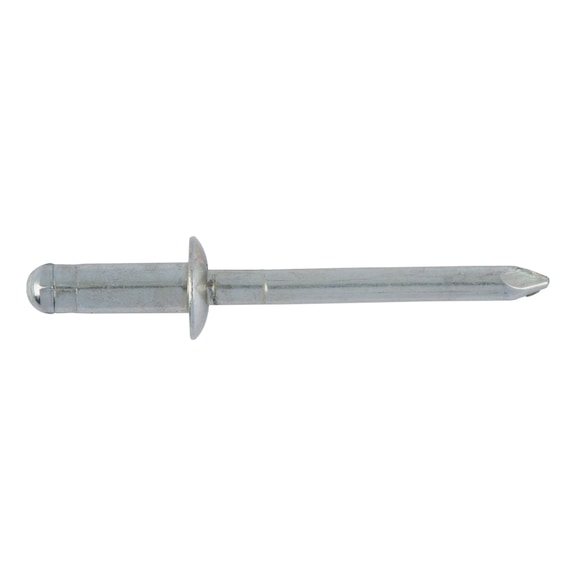

Blind Rivet Flat Head RIV ST 32 | 3.2 x 12.5 mm | Galvanised Steel | Flush Finish | @Pack of 100 | by Wurth
Blind rivet flat head RIV ST 32 is designed for secure fastening in construction, automotive, and manufacturing applications. With a nominal diameter of 3.2 mm and a length of 12.5 mm, these galvanised steel rivets offer a flush finish and a grip range of 3.2-10 mm. Ideal for joining metal sheets and plastics where access is limited to one side, they ensure durability and corrosion resistance for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blind Rivet Flat Head RIV ST 32 | 3.2 x 12.5 mm | Galvanised Steel | Flush Finish | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 937331322
Alternatively Known As: Blind rivet, Pop rivet, Flat head rivet, Steel rivet, Fastening rivet
Technical Specifications
- Nominal diameter x length (d1 x l1): 3.2 x 12.5 mm
- Min./max. grip range: 3.2-10 mm
- Colour: Steel grey
- Head diameter (d k): 5.8 mm
- Head height (k 1): 1 mm
- Shear-fracture load: 0 N
- Tensile fracture load: 0 N
- Material of sleeve: Steel
- Material of mandrel: Steel
- Surface of the sleeve: Plain
- Surface of the mandrel: Plain
- RoHS-compliant: No
- Mandrel diameter (d m): 3.12 mm
- Dimensions (H x L x W): 12.5mm x 125mm x 125mm
- Weight: 0.1 kg
Key Features
- Sleeve made of galvanised steel with blue passivation (A2K)
- Mandrel made of galvanised steel with blue passivation (A2K)
- Flat head design for a flush finish
- Nominal diameter x length: 3.2 x 12.5 mm
- Minimum/maximum grip range: 3.2-10 mm
- Steel grey colour
- Head diameter: 5.8 mm
- Head height: 1 mm
- Mandrel diameter: 3.12 mm
Professional Installation Requirements
- Installation requires appropriate riveting tools and should be performed by trained personnel to ensure secure fastening.
Applications
- Used for fastening materials in construction, automotive, and manufacturing industries
- Ideal for joining metal sheets, plastics, and other materials where access is limited to one side
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanised steel provides corrosion resistance, extending product life and reducing waste
- Durable fastening reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Blind Rivet Flat Head RIV ST 32 10MM 32X125MM 100 PCS is available for immediate purchase, ideal for industrial and construction fastening applications.
