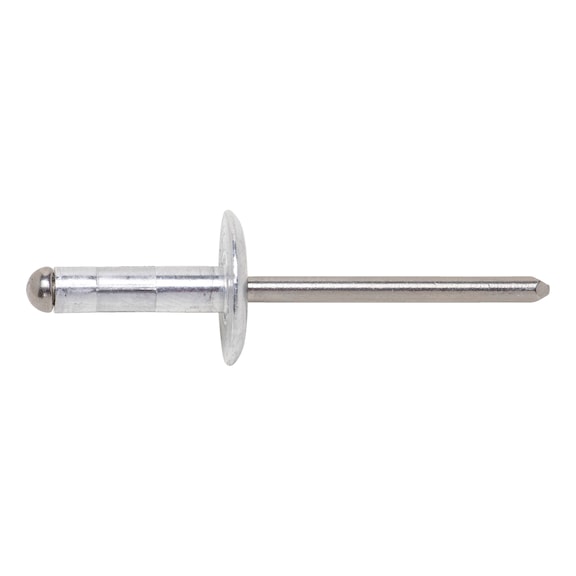

Blind Rivet Large Flat Head | Aluminium Sleeve | Galvanised Steel Pin | 50 PCS | by Wurth
Blind rivet large flat head designed for versatile fastening applications, featuring a lightweight aluminium sleeve and a durable galvanised steel pin. Ideal for construction, automotive, and manufacturing industries, these rivets ensure strong, reliable connections in metal, plastic, and composite materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blind Rivet Large Flat Head | Aluminium Sleeve | Galvanised Steel Pin | 50 PCS | by Wurth
Brand: Wurth
SKU: 91504825
Alternatively Known As: Large Flat Head Blind Rivet, Aluminium Blind Rivet, Multi-purpose Blind Rivet
Technical Specifications
- Nominal diameter x length: 4.8 x 25 mm
- Min./max. grip range: 12.0-19.5 mm
- Head diameter: 16.0 mm
- Head height: 2.5 mm
- Min./max. drill hole diameter: 4.9-5.1 mm
- Shear-fracture load: 1500 N
- Tensile fracture load: 2350 N
- Material of mandrel: Steel
- Material of sleeve: Aluminium
- Surface of the mandrel: Zinc plated
- Surface of the sleeve: Plain
- Head type: Big dome head
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.5mm x 25mm x 16mm
- Weight: 0.05 kg
Key Features
- Sleeve made of aluminium for lightweight and corrosion resistance
- Pin made of galvanised steel with blue passivation (A2K) for enhanced durability
- Multi-purpose blind rivet with a large clamping length range
- Universally applicable due to versatile design
Professional Installation Requirements
- Installation requires appropriate blind rivet tools and should be performed by trained personnel to ensure secure fastening.
Applications
- General fastening applications requiring strong, reliable blind rivets
- Suitable for metal, plastic, and composite materials
- Ideal for construction, automotive, and manufacturing industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Aluminium sleeve contributes to recyclability
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Blind Rivet Large Flat Head 50 PCS is available now for immediate purchase. Ideal for industrial, construction, and automotive fastening applications.
