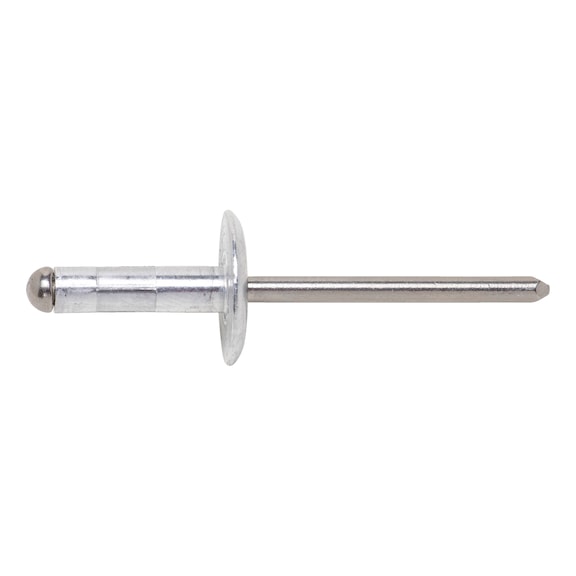

Blind Rivet Large Flat Head | Aluminium Sleeve | Galvanised Steel Pin | Multi-Purpose | @Pack of 50 | by Wurth
Blind rivet large flat head with an aluminium sleeve and galvanised steel pin is perfect for various fastening applications. Designed for metal, plastic, and composite materials, this multi-purpose rivet offers a large clamping length range, making it ideal for automotive, construction, and manufacturing industries. Ensure secure fastening with professional installation using appropriate tools.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blind Rivet Large Flat Head | Aluminium Sleeve | Galvanised Steel Pin | Multi-Purpose | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 91504810
Alternatively Known As: Blind rivet, large dome head rivet, aluminium blind rivet, multi-purpose blind rivet
Technical Specifications
- Nominal diameter x length: 4.8 x 10 mm
- Min./max. grip range: 0.5-5.0 mm
- Head diameter: 16.0 mm
- Head height: 2.5 mm
- Min./max. drill hole diameter: 4.9-5.1 mm
- Shear-fracture load: 1500 N
- Tensile fracture load: 2350 N
- Material of mandrel: Steel
- Material of sleeve: Aluminium
- Surface of the mandrel: Zinc plated
- Surface of the sleeve: Plain
- Head type: Big dome head
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.5mm x 10mm x 16mm
- Weight: 0.05 kg
Key Features
- Sleeve made of aluminium for lightweight and corrosion resistance
- Pin made of galvanised steel with blue passivation (A2K) for enhanced durability
- Multi-purpose blind rivet with a large clamping length range
- Universally applicable due to the large clamping length range
Professional Installation Requirements
- Installation requires appropriate blind rivet tools and should be performed by trained personnel to ensure secure fastening.
Applications
- General fastening applications requiring blind rivets
- Suitable for metal, plastic, and composite materials
- Ideal for automotive, construction, and manufacturing industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Aluminium sleeve is recyclable and lightweight, reducing material usage
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Blind Rivet Large Flat Head 50 PCS is available now for immediate purchase. Ideal for industrial and construction fastening applications.
