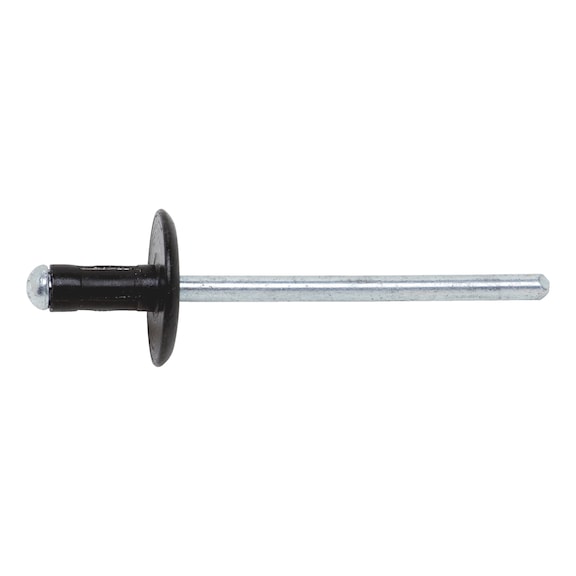

Blind Rivet Large Flat Head | Multi-Use Design | Black Anodised Aluminium | @Pack of 50 | by Wurth
Blind rivet large flat head is perfect for fastening materials with access from one side, making it ideal for automotive, construction, and metalworking applications. With a big dome head design and a sleeve made of black anodised aluminium, these rivets ensure secure fastening and durability, reducing the need for frequent replacements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blind Rivet Large Flat Head | Multi-Use Design | Black Anodised Aluminium | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 91594825
Alternatively Known As: Blind rivet, Pop rivet, Large head rivet, Dome head rivet
Technical Specifications
- Nominal diameter x length: 4.8 x 25 mm
- Min./max. grip range: 12.5-19.5 mm
- Head diameter: 16.0 mm
- Head height: 1.8 mm
- Min./max. drill hole diameter: 4.9-5.0 mm
- Shear-fracture load: 1500 N
- Tensile fracture load: 2300 N
- Material of mandrel: Steel
- Material of sleeve: Aluminium
- Surface of mandrel: Zinc plated
- Surface of sleeve: Black anodised
- RoHS-compliant: Yes
- Head type: Big dome head
- Dimensions (H x L x W): 1.8mm x 25mm x 16mm
- Weight: 0.05 kg
Key Features
- Multi-use blind rivet
- Sleeve made of black anodised aluminium
- Pin made of blue passivated galvanised steel (A2K)
- Big dome head design for large flat surface area
Professional Installation Requirements
- Installation requires appropriate riveting tools and should be performed by trained personnel to ensure secure fastening.
Applications
- Suitable for fastening materials where access is only possible from one side
- Used in automotive, construction, and metalworking industries
- Ideal for joining sheet metal, plastic, and other materials
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable materials reduce need for frequent replacements
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Blind Rivet Large Flat Head 50 PCS is available for immediate purchase, ideal for industrial and construction fastening applications.
