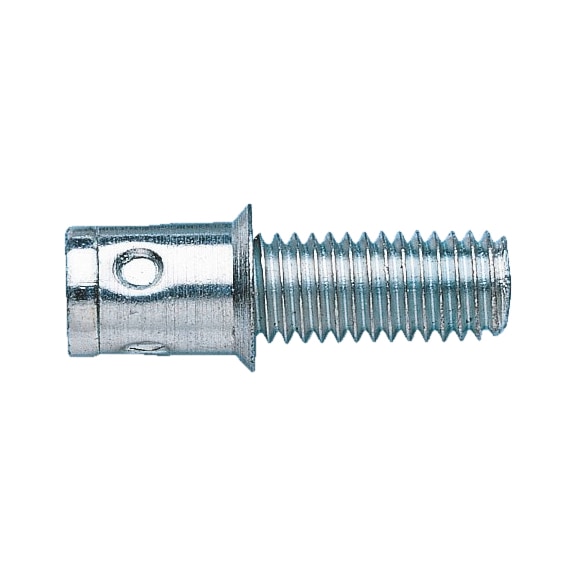

Blind Riveting Screw with Countersunk Head | Heavy-Duty Design | Zinc Plated | @Pack of 10 | by Wurth

BRAND: Wurth
SKU: 94871515
$77.40 List price: $97.30
10 PCS ($7.74 per PCS)
+ −
30 Days Return Delivery Options
Blind riveting screws with countersunk heads are perfect for heavy-duty fastening in thin-walled materials. Made from galvanized steel with a durable zinc plating, these screws ensure secure fastening and compliance with RoHS standards. Ideal for professionals, they function as standard screws welded on or inserted from behind, providing versatility and reliability in various applications.

Product Name/Title: Blind Riveting Screw with Countersunk Head | Heavy-Duty Design | Zinc Plated | @Pack of 10 | by Wurth

Brand: Wurth

SKU: 94871515

Alternatively Known As: Blind rivet screw, Countersunk rivet screw, Heavy-duty rivet screw, Zinc plated rivet screw

Technical Specifications
  • Thread type x nominal diameter (d): M5
  • Rivet diameter (d1): 6.5 mm
  • Thread length unset (l1): 13 mm
  • Thread length set (l1): 15 mm
  • Sleeve length: 10 mm
  • Head diameter (dk): 9.0 mm
  • Head height (k1): 1.4 mm
  • Material: Steel
  • Surface: Zinc plated
  • RoHS-compliant: Yes
  • Min./max. grip range: 1.5-2.8 mm
  • Tightening torque: 6 Nm
  • Max. tensile force: 8000 N
  • Shear-fracture load: 9500 N
  • Head type: Countersunk head
  • Drill hole diameter: 6.6 mm
  • Dimensions (H x L x W): 1.4mm x 15mm x 9mm
  • Weight: 0.02 kg
Key Features
  • Countersunk head design
  • Galvanised steel with blue passivation (A2K)
  • Suitable for heavy-duty screw threads in thin-walled materials
  • Functions as standard screws welded on or inserted from behind
Professional Installation Requirements
  • Installation should be performed by a professional with appropriate tools to ensure correct torque and secure fastening.
Applications
  • Heavy-duty screw threads in thin-walled materials
  • Replacement for standard screws welded on or inserted from behind
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • RoHS-compliant material ensures reduced hazardous substances
  • Durable zinc plating extends product life reducing waste
Warranty Information

Standard manufacturer warranty applies.

Available Now

Wurth Blind Riveting Screw with Countersunk Head 10 PCS is available for immediate purchase, ideal for heavy-duty fastening in thin-walled materials.
