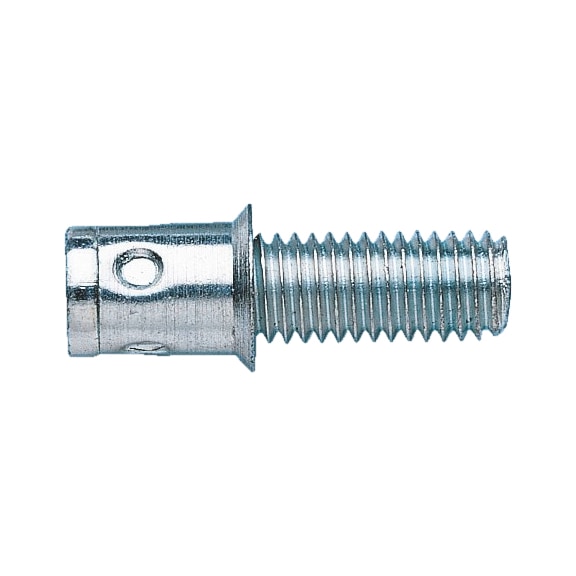

Blind Riveting Screw with Countersunk Head | Heavy-Duty Design | Zinc Plated | @Pack of 10 | by Wurth
Blind riveting screws with a countersunk head are perfect for heavy-duty fastening in thin-walled materials. Made from galvanized steel with blue passivation, these screws ensure secure installation and compliance with AS/NZS 1170 standards. Ideal for construction and manufacturing applications, they replace standard screws welded on or inserted from behind, providing a reliable solution for your fastening needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blind Riveting Screw with Countersunk Head | Heavy-Duty Design | Zinc Plated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 94871615
Alternatively Known As: Blind rivet screw, Countersunk rivet screw, Heavy-duty rivet screw, Zinc plated rivet screw
Technical Specifications
- Thread type x nominal diameter (d): M6
- Rivet diameter (d1): 7.7 mm
- Thread length unset (l1): 13.5 mm
- Thread length set (l1): 15 mm
- Sleeve length: 11 mm
- Head diameter (dk): 10.0 mm
- Head height (k1): 1.3 mm
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Min./max. grip range: 1.5-3.2 mm
- Tightening torque: 11 Nm
- Max. tensile force: 9500 N
- Shear-fracture load: 12000 N
- Head type: Countersunk head
- Drill hole diameter: 7.8 mm
- Dimensions (H x L x W): 1.3mm x 15mm x 10mm
- Weight: 0.05 kg
Key Features
- Countersunk head design
- Galvanised steel with blue passivation (A2K)
- Fulfil functions of standard screws welded on or inserted from behind
- Heavy-duty screw threads for thin-walled materials
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper torque and secure fastening.
Applications
- Heavy-duty screw threads in thin-walled materials
- Replacement for standard screws welded on or inserted from behind
- Suitable for mechanical fastening in construction and manufacturing
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Blind Riveting Screw with Countersunk Head 10 PCS is available now for immediate purchase. Ideal for heavy-duty fastening in construction and manufacturing applications.
