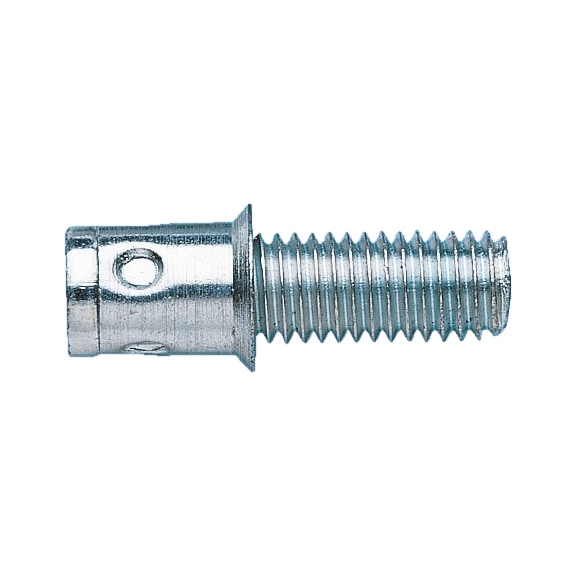

Blind Riveting Screw with Countersunk Head | Heavy-Duty Design | Zinc Plated for Corrosion Resistance | @Pack of 10 | by Wurth
Blind riveting screws with countersunk heads are perfect for heavy-duty fastening in thin-walled materials. Made from galvanized steel, these screws offer excellent corrosion resistance and a flush finish, making them ideal for construction and manufacturing applications. Designed for professional installation, they ensure secure fastening and compliance with industry standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blind Riveting Screw with Countersunk Head | Heavy-Duty Design | Zinc Plated for Corrosion Resistance | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 94871815
Alternatively Known As: Blind rivet screw, Countersunk rivet screw, Heavy-duty rivet screw, Zinc plated rivet screw
Technical Specifications
- Thread type x nominal diameter (d): M8
- Rivet diameter (d1): 9.8 mm
- Thread length unset (l1): 13.5 mm
- Thread length set (l1): 15 mm
- Sleeve length: 13.5 mm
- Head diameter (dk): 12.0 mm
- Head height (k1): 1.3 mm
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Min./max. grip range: 1.5-3.8 mm
- Tightening torque: 24 Nm
- Max. tensile force: 12000 N
- Shear-fracture load: 23500 N
- Head type: Countersunk head
- Drill hole diameter: 9.9 mm
- Dimensions (H x L x W): 1.3mm x 15mm x 12mm
- Weight: 0.05 kg
Key Features
- Countersunk head for flush finish
- Galvanised steel with blue passivation (A2K) for corrosion resistance
- Designed for heavy-duty screw threads in thin-walled materials
- Functions as standard screws welded on or inserted from behind
Professional Installation Requirements
- Installation should be performed by a professional or skilled tradesperson to ensure correct torque and secure fastening.
Applications
- Heavy-duty screw threads in thin-walled materials
- Replacement for standard screws welded on or inserted from behind
- Suitable for construction, manufacturing, and repair tasks requiring strong fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Durable galvanised steel reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Blind Riveting Screw with Countersunk Head 10 PCS is available for immediate purchase, ideal for heavy-duty fastening applications in construction and manufacturing.
