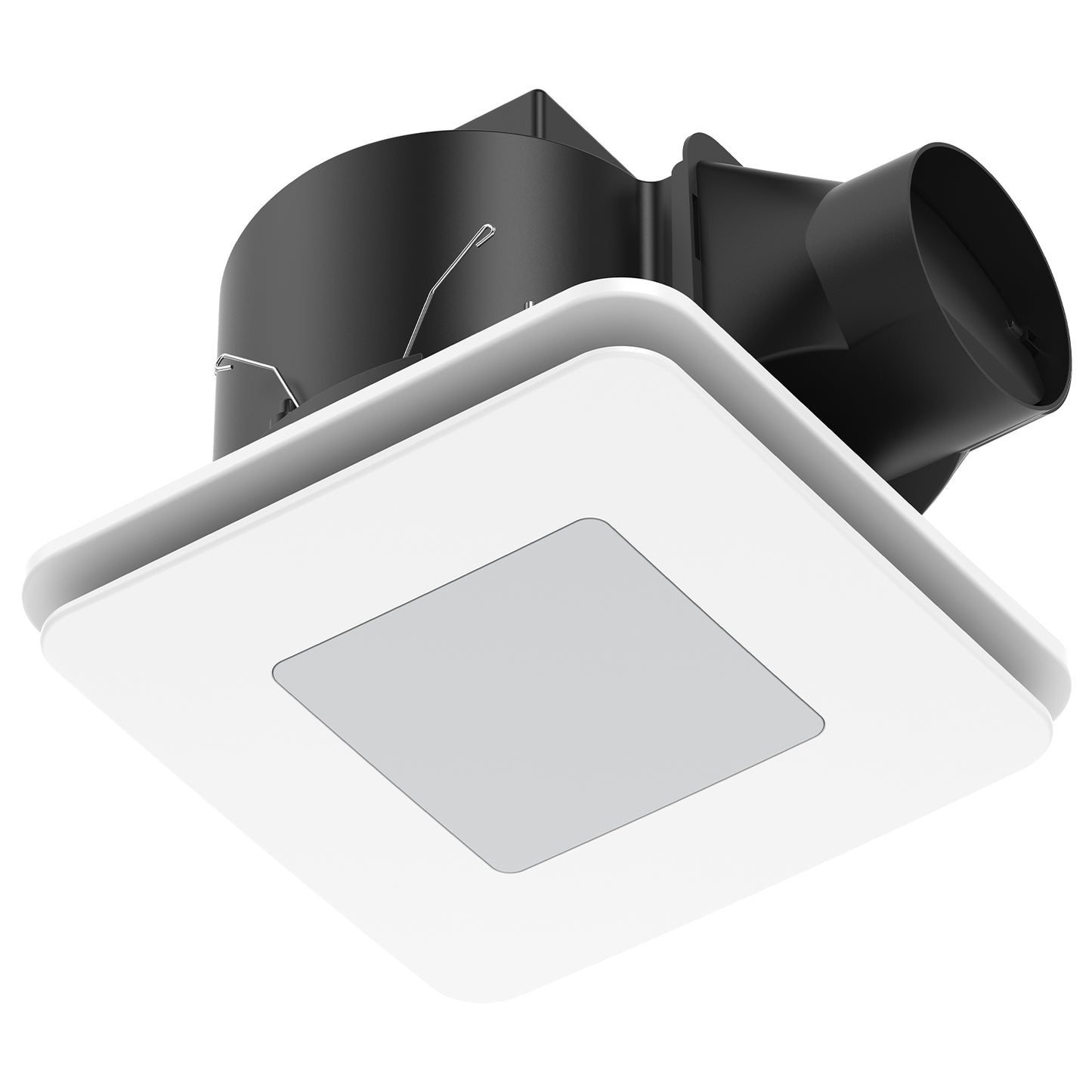

Blizzard 270 DC Square Exhaust Fan | 20W DC Motor | CCT LED Panel | High Airflow 400m³/hr | by Brilliant Lighting
The Blizzard 270 DC Square Exhaust Fan is designed for effective ventilation in bathrooms and laundry rooms, featuring a powerful 20W DC motor for quiet operation and an integrated CCT LED panel with selectable color temperatures (3000K, 4200K, 6000K). With an impressive airflow extraction of up to 400m³/hr, this fan not only enhances air quality but also reduces humidity and mold risk, making it ideal for any space requiring efficient ventilation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blizzard 270 DC Square Exhaust Fan | 20W DC Motor | CCT LED Panel | High Airflow 400m³/hr | by Brilliant Lighting
Brand: Brilliant Lighting
SKU: 23028/05
Alternatively Known As: ['Bathroom exhaust fan with LED', 'Brilliant Blizzard 270 fan', 'Square ceiling exhaust fan', 'DC exhaust fan with light', 'Bathroom ventilation fan with CCT LED']
Technical Specifications
- Motor Wattage: 20W DC
- Air Extraction: Up to 400m³/hr
- LED Panel: 12W, CCT selectable (3000K/4200K/6000K)
- Noise Level: 40dB(A) at 3m
- Cut-out Size: 240mm x 240mm
- Fascia Size: 270mm x 270mm
- Duct Outlet: 150mm diameter
- Voltage: 220-240V AC, 50Hz
- Material: ABS plastic fascia
- IP Rating: IPX4
- Dimensions (H x L x W): 210mm x 270mm x 270mm
- Weight: 2.5 kg
Key Features
- Energy-efficient 20W DC motor for quiet operation
- Integrated CCT LED panel with selectable colour temperatures (3000K, 4200K, 6000K)
- High airflow extraction up to 400m³/hr
- Slim, modern square fascia in white finish
- Long-life ball bearing motor
- 5-year warranty
- Low profile design suitable for most ceiling types
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with Australian electrical standards and optimal performance.
Applications
- Bathrooms: Effective steam and moisture extraction
- Laundry rooms: Ventilation and odour control
- Toilets: Air circulation and humidity management
- Kitchens: Supplementary ventilation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient DC motor reduces electricity consumption
- LED lighting minimizes energy use and lasts longer than traditional bulbs
- Improves indoor air quality by reducing humidity and mould risk
Warranty Information
5-year warranty on the motor, 2-year in-home warranty on all parts.
Available Now
The Blizzard 270 DC Square Exhaust Fan with CCT LED by Brilliant Lighting is available for immediate purchase. Ideal for bathrooms, laundries, and other areas requiring efficient ventilation and lighting.
