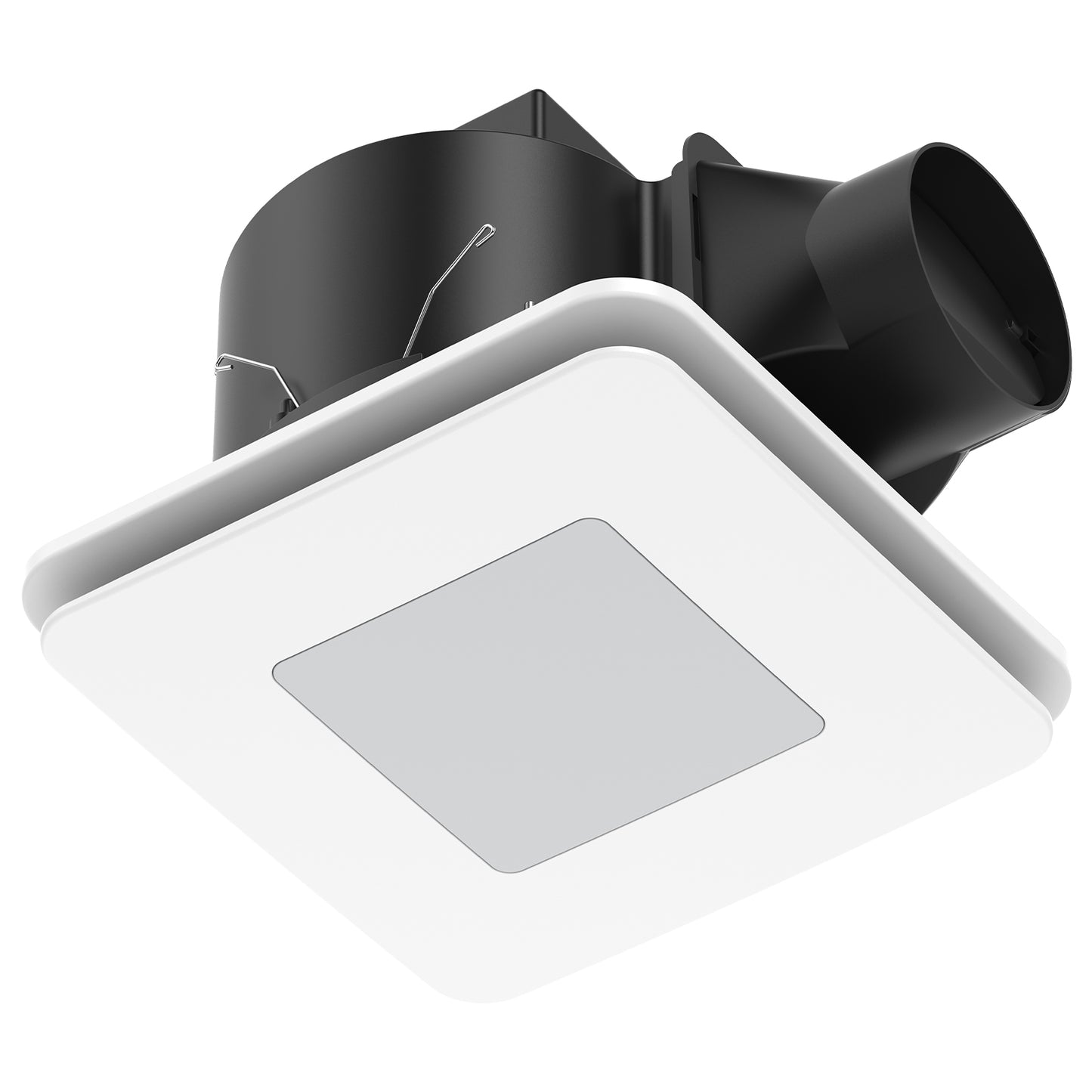

BLIZZARD 330 DC Square Exhaust Fan | 400m³/h Airflow | CCT LED Panel | IPX4 Rated | by Brilliant Lighting
The BLIZZARD 330 DC Square Exhaust Fan is designed for efficient ventilation in bathrooms and laundry rooms, featuring a powerful 400m³/h airflow and a selectable CCT LED panel with 3000K, 4200K, and 6000K options. With a quiet 40W DC motor and an IPX4 rating, this fan ensures optimal performance and energy efficiency, making it perfect for indoor spaces that require reliable air extraction and lighting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: BLIZZARD 330 DC Square Exhaust Fan | 400m³/h Airflow | CCT LED Panel | IPX4 Rated | by Brilliant Lighting
Brand: Brilliant Lighting
SKU: 23029/05
Alternatively Known As: ['Brilliant Blizzard 330 Exhaust Fan', 'Blizzard 330 DC Bathroom Fan', 'Brilliant 23029/05 Exhaust Fan', 'Square LED Exhaust Fan', 'Bathroom Exhaust Fan with LED']
Technical Specifications
- Motor Wattage: 40W DC
- Air Extraction: 400m³/h
- Noise Level: 40dB(A) at 3m
- Colour Temperature: 3000K / 4200K / 6000K (CCT selectable)
- LED Wattage: 12W
- Cut-out Size: 295 x 295mm
- Fascia Size: 330 x 330mm
- Duct Outlet: 150mm diameter
- Voltage: 220-240V AC, 50Hz
- IP Rating: IPX4
- Dimensions (H x L x W): 210mm x 330mm x 330mm
- Weight: 2.8 kg
Key Features
- High airflow DC motor for energy efficiency and quiet operation
- Integrated CCT LED panel with selectable colour temperature (3000K/4200K/6000K)
- Low profile square fascia in white finish
- 40W motor with high extraction rate
- 5-year warranty
- Easy installation and maintenance
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with Australian electrical standards and optimal performance.
Applications
- Bathrooms
- Laundry rooms
- Toilets
- Kitchens
- Commercial washrooms
- General indoor ventilation areas
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient DC motor reduces power consumption
- LED lighting minimises energy use and heat output
- Improved indoor air quality reduces mould and moisture
Warranty Information
5-year warranty on the motor, 2-year in-home warranty.
Available Now
The BLIZZARD 330 DC Square Exhaust Fan with CCT LED - White is available for immediate purchase. Ideal for bathrooms, laundries, and other indoor spaces requiring efficient ventilation and lighting.
