Bloc-20 Surface LED Profile Opal Diff Aluminium Per Metre Domus

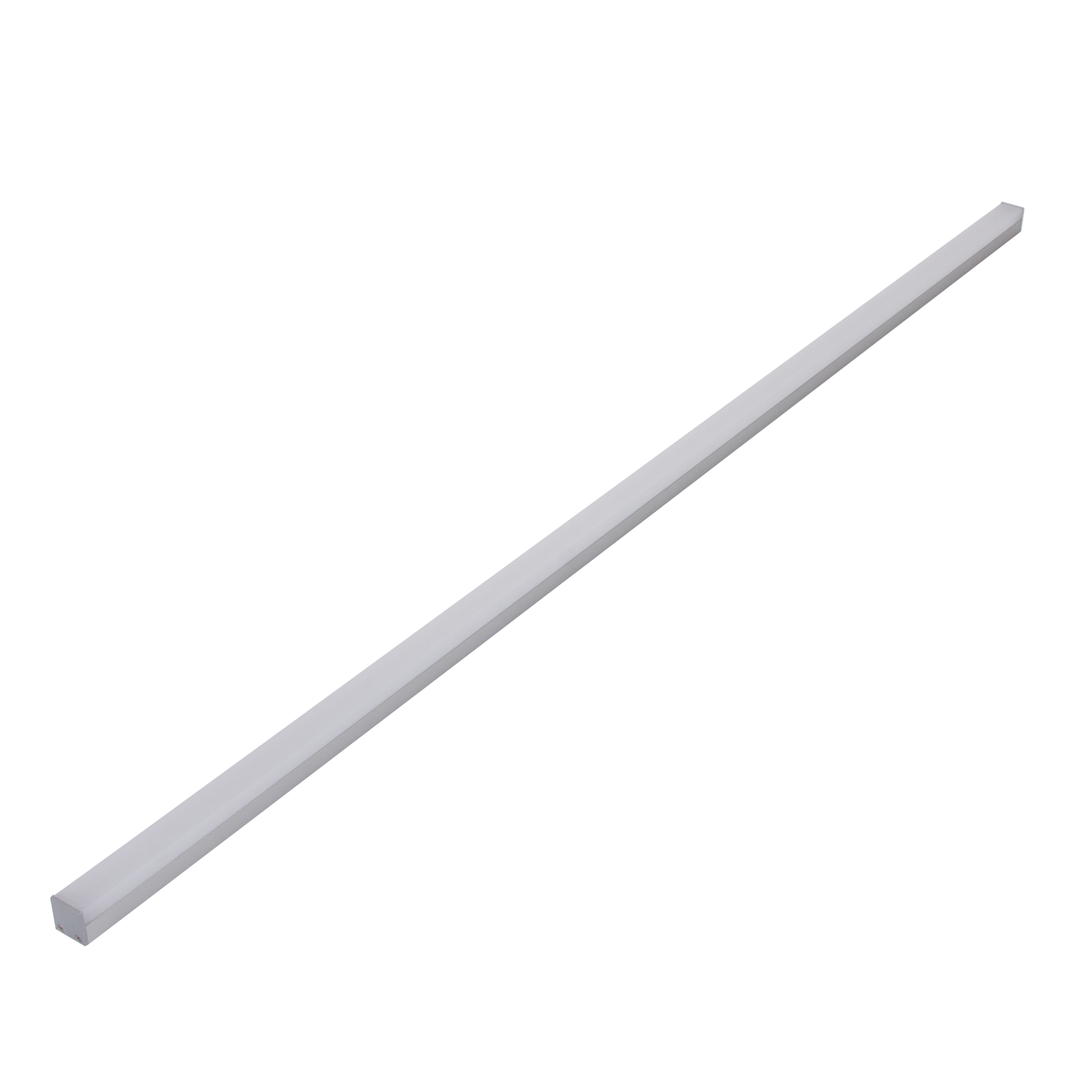

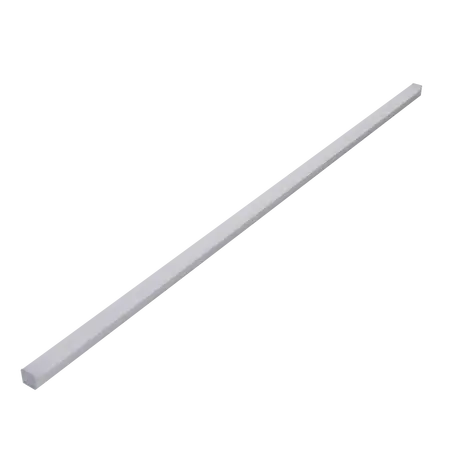

Domus Bloc-20 surface mount aluminium LED strip profile, 20x20mm, square opal diffuser, aluminium, sold per metre.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bloc-20 LED Profile, Square LED Strip Profile, Aluminium LED Channel, Surface-Mount LED Strip Housing
Technical Specifications
- Material: Aluminium profile with square opal PMMA diffuser
- Finish: Aluminium
- Diffuser Type: Opal
- Installation: Surface, wall or suspended mounted
- Profile Width: 19.8mm
- Profile Height: 19.6mm
- Continuous Length: 2500mm maximum
- Sale Unit: Per metre
- Compatibility: Domus LED strip lighting
- Dimensions (H x L x W): 19.6mm x 1000mm x 19.8mm
- Weight: 0.12 kg
Key Features
- Square architectural profile design
- Opal diffuser conceals LED strip components
- Produces smooth, uniform linear light output
- Aluminium housing assists LED heat dissipation
- Protects LED strips from dust, vapours and foreign objects
- Suitable for residential and commercial interiors
- Can be surface, wall or suspended mounted
Applications
- Under-shelf and shelving illumination
- Storage areas and wardrobes
- Bathrooms and laundry areas
- Dining rooms and living spaces
- Architectural feature and accent lighting
- Residential and commercial linear lighting installations
Environmental Benefits
- Aluminium is highly recyclable at end of service life
- Aluminium construction assists heat management, potentially extending LED strip service life
- Protecting LED strips from contaminants can reduce premature replacement and material waste
Warranty Information
Domus Lighting's standard warranty for products not otherwise listed is a 12-month replacement warranty, subject to proof of purchase, authorised distribution, compliant installation and the manufacturer's warranty conditions.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
