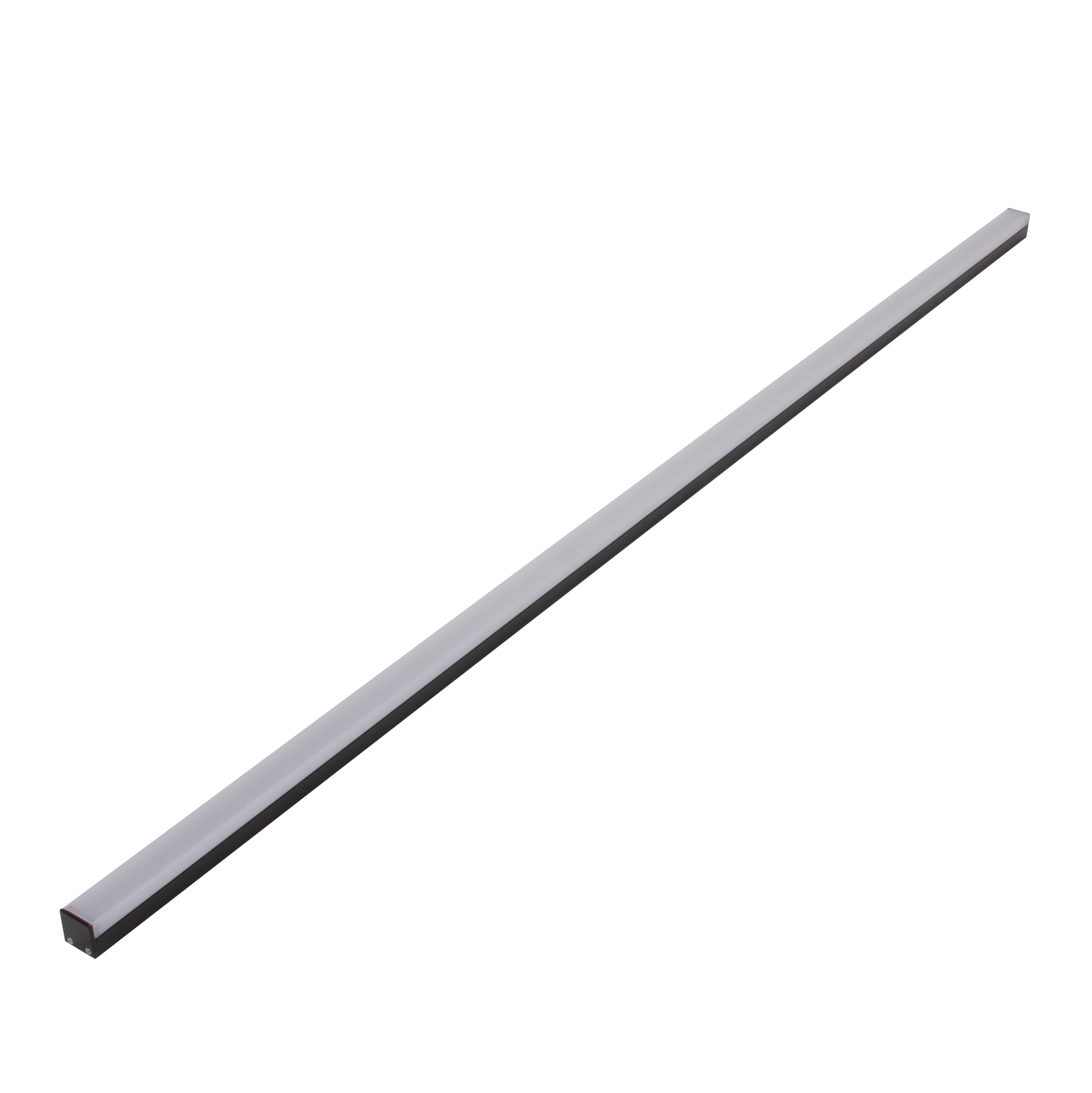

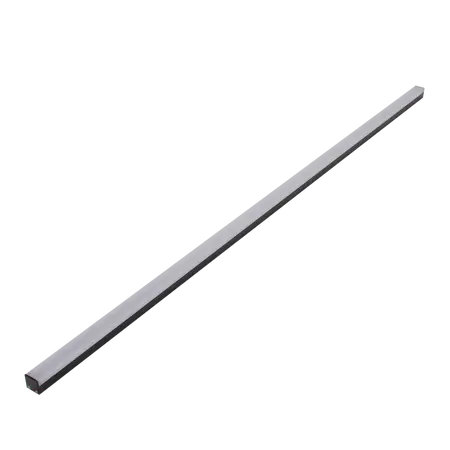

Bloc-20 Surface Mount LED Profile 20x20mm Black 3m Length Domus
Domus Bloc-20 surface mount aluminium LED strip profile, 20x20mm, black, 3m length.
Sign in
Please login to continue to your account.
Alternatively Known As: LP-1919S, LP-1919S-SM-3M, Bloc-20 Square Diffuser LED Profile, Surface-Mount Aluminium LED Channel
- Material: Extruded aluminium 6063 with PMMA diffuser
- Finish: Black
- Diffuser: Square opal PMMA
- Installation: Surface, wall or suspended mounted
- Nominal profile size: 20 x 20 mm
- Actual profile size: 19.8 mm wide x 19.6 mm high
- Length: 3000 mm
- Compatible lighting: Domus PLEX LED strip lighting
- Accessories: End caps and mounting clips available separately
- Driver: Remote driver required and not included
- Dimensions (H x L x W): 19.6mm x 3000mm x 19.8mm
- Weight: 0.36 kg
- Conceals LED strip lighting for a clean architectural finish
- Square opal diffuser provides smooth, uniform linear light output
- Aluminium extrusion helps dissipate heat from the LED strip
- Protects the LED strip from dust, vapours and foreign objects
- Suitable for surface, wall or suspended mounting
- Black finish for discreet integration with dark interior schemes
- Can be cut to suit installation requirements
- Designed for residential and commercial lighting applications
- The profile is a passive mounting component. Electrical connection of the LED strip, remote driver and controls should be completed by a licensed electrician in accordance with applicable electrical installation requirements.
- Architectural feature and accent lighting
- Shelving and cabinetry
- Storage areas
- Living rooms and dining areas
- Commercial interiors and display areas
- Bathrooms when paired with suitably rated LED strip lighting and driver
- Aluminium is durable and widely recyclable at end of service life
- Aluminium construction assists LED strip heat dissipation, supporting longer service life and reducing replacement waste
- Protective housing can help reduce premature LED strip damage from dust and vapours
Domus Lighting's current warranty statement provides a 12-month replacement warranty for products not otherwise listed in its warranty-duration table, subject to proof of purchase, authorised supply, correct installation and applicable warranty conditions.
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
