Blue Insulation Tape Pack of 10 | 0.135mm Thickness | Flame Retardant | Weather Resistant by Cabac
Insulation tape with 0.135mm thickness and flame retardance—ideal for electrical insulation and wire harnessing. Built for durability, with strong adhesion and resistance to weather, oil, and acids.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

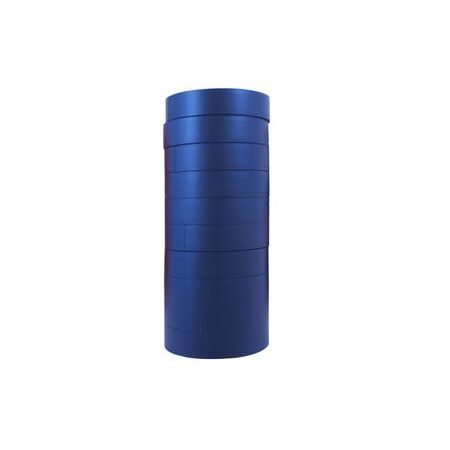

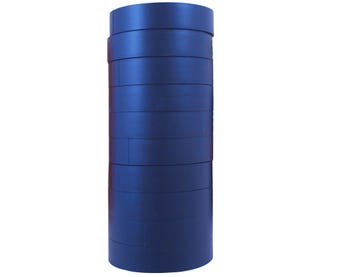

Product Name/Title: Insulation Tape Blue Pack of 10 Rolls
Brand: Cabac
SKU: ITBL/10
Alternatively Known As: PVC Electrical Tape, Blue Electrical Insulation Tape, Electrical Insulation Tape Roll, Cable Wrapping Tape, Wire Harness Tape
Technical Specifications
- Material Composition: PVC
- Thickness: 0.135 mm
- Adhesive Type: Rubber
- Adhesion Strength: >0.32 kg/19mm
- Elongation: >150%
- Dielectric Strength: 40 kV/mm
- Tensile Strength: >4.7 kg/25mm
- Flame Retardant: Yes
- Resistance: Weather, oil, and acid resistant
- Operating Temperature Range: 0 to 90°C
- Dimensions (H x L x W): 20mm x 10000mm x 19mm
- Weight: 0.15 kg
Key Features
- Standard grade electrical PVC tape with 0.135mm thickness
- Rated up to 600V for reliable insulation
- Durable elasticity and strong adhesion
- Flame retardant and resistant to weather, oil, and acids
- Operates effectively within 0 to 90°C temperature range
- RoHS and REACH compliant
Professional Installation Requirements
- No special professional installation required; however, ensure surface is clean, dry, and free from grease or dust before application for optimal adhesion.
Applications
- Identification and coding of electrical components
- Harnessing: Bundling and securing wires and cables within electrical systems
- General wire wrapping for secure, protective, and durable wire management
- Basic insulation for electrical connections and components
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS and REACH compliance ensures reduced hazardous substances and safer chemical use
- Durable and long-lasting material reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
Cabac Insulation Tape Blue Pack of 10 Rolls is available now for immediate purchase. Ideal for electrical insulation, wire harnessing, and identification in industrial and residential electrical applications.
