Blue LED Light Sensor | Sensing Distance ≤ 50 mm | IP67 Rated | PNP/NPN Outputs | by SICK
The Blue LED Light Sensor is designed for precise object detection with a sensing distance of up to 50 mm and a blue LED light source at 470 nm. Ideal for industrial automation and manufacturing processes, this sensor features a robust IP67 rated enclosure, ensuring durability in harsh environments. With fast response times and easy adjustment via a double teach-in button, it’s perfect for quality control and inspection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

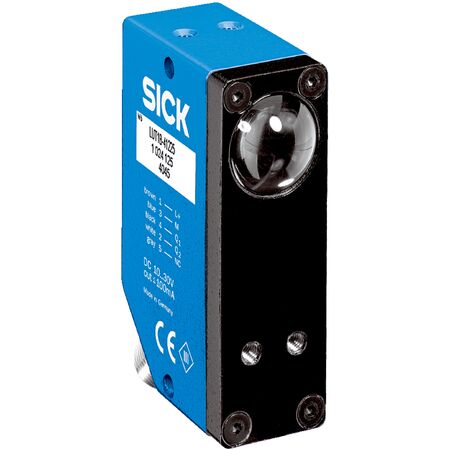

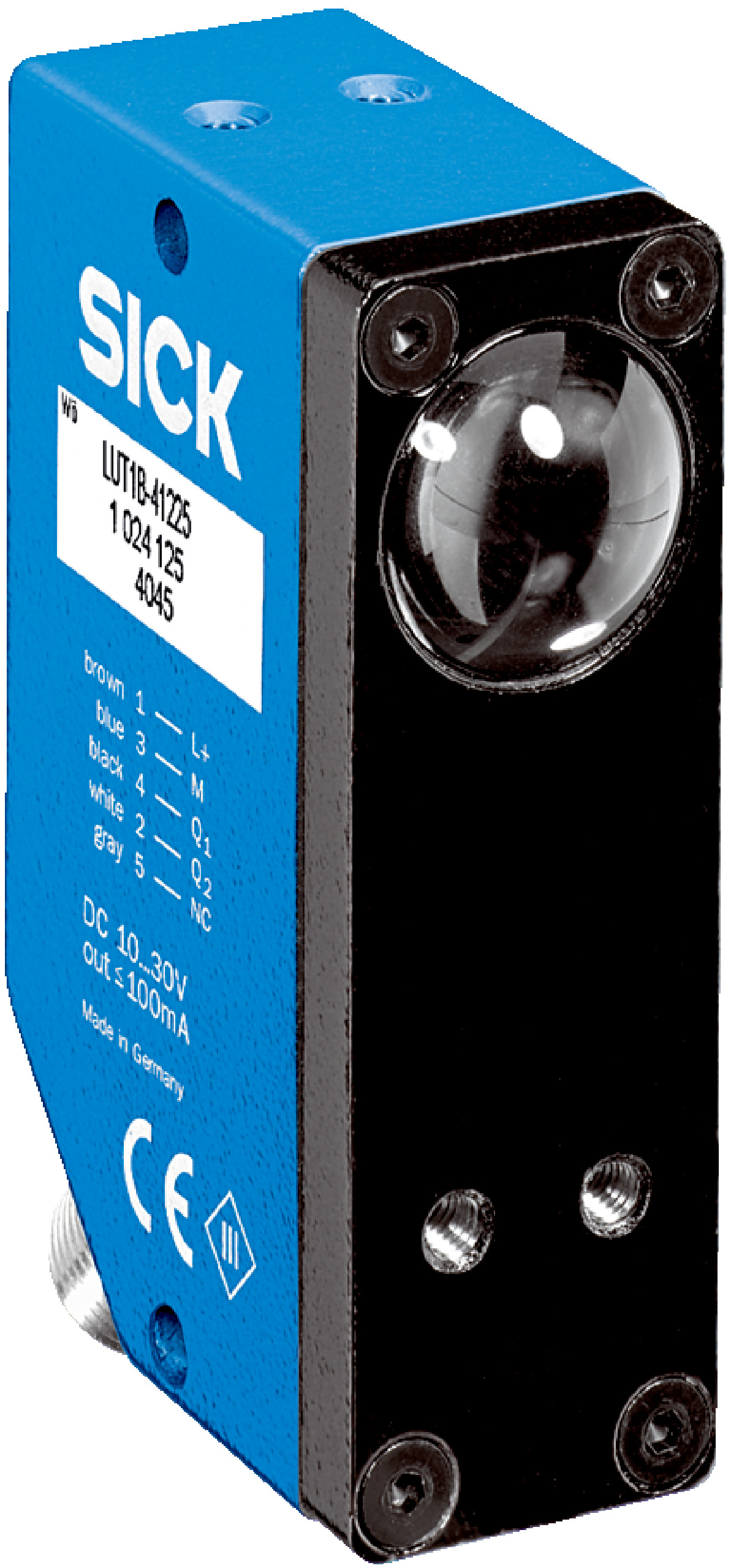

Product Name/Title: Blue LED Light Sensor | Sensing Distance ≤ 50 mm | IP67 Rated | PNP/NPN Outputs | by SICK
Brand: SICK
SKU: 1027593
Alternatively Known As: Blue LED Light Sensor, Proximity Sensor, Industrial Object Sensor, SICK LUT1B Sensor
Technical Specifications
- Sensing distance: ≤ 50 mm
- Working range: 15 mm to 60 mm
- Light source: Blue LED, 470 nm wavelength
- Light emission: Long side
- Light spot size: 5 mm x 5 mm
- Receiving filters: ≤ 590 nm
- Receiving range: 590 nm to 750 nm
- Adjustment: Double teach-in button
- Output function: Light switching
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: < 40 mA
- Switching frequency: 6 kHz
- Response time: 85 µs
- Switching output: PNP, NPN
- Output current max: 200 mA
- Connection type: Male connector M12, 5-pin
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Shock load: According to IEC 60068
- Dimensions (H x L x W): 70mm x 47.5mm x 23mm
- Weight: 0.24 kg
Key Features
- Sensing distance up to 50 mm
- Blue LED light source with 470 nm wavelength
- Light emission from long side with 5 mm x 5 mm light spot size
- Double teach-in button for easy adjustment
- PNP and NPN switching outputs with light switching mode
- High switching frequency of 6 kHz and fast response time of 85 µs
- Protection class III with IP67 rated enclosure
- Reverse polarity and short-circuit protected outputs
- Robust zinc diecast housing
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Quality control and inspection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable zinc diecast housing extends product life reducing waste
- IP67 rating ensures protection against dust and water, minimizing environmental damage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LUT1B-31325 Blue LED Light Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
