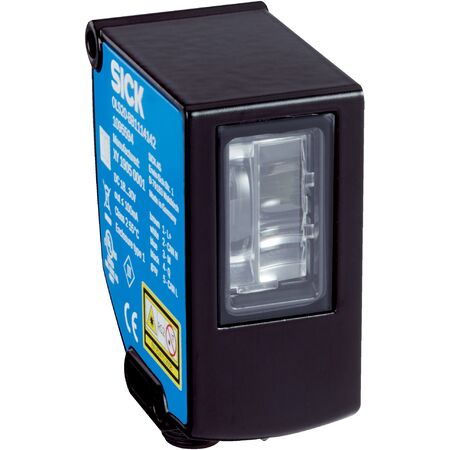

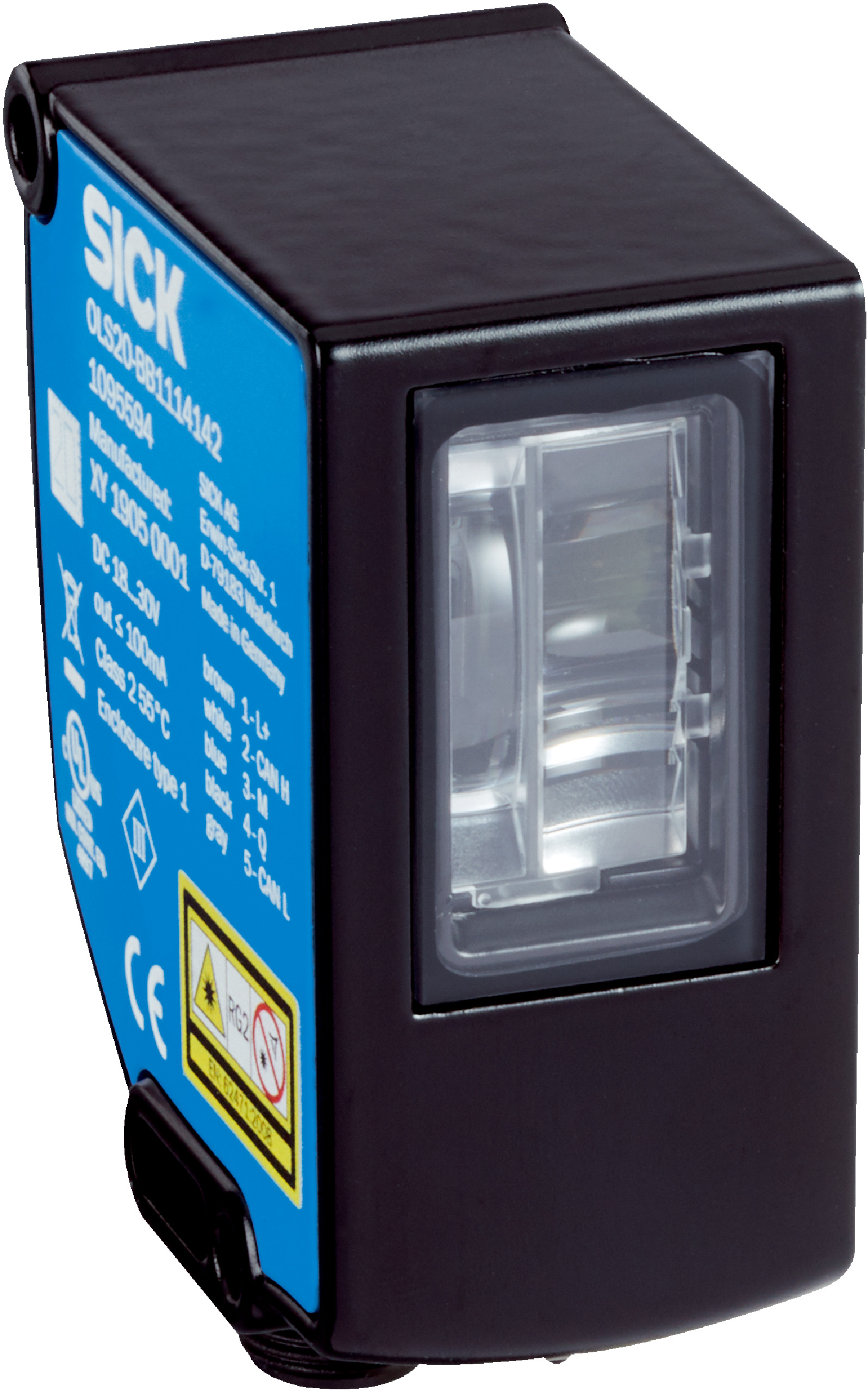

Blue LED Optical Sensor | IP67 Rated | 100 mm Sensing Distance | IO-Link & CANopen Support | by SICK
The Blue LED Optical Sensor is designed for industrial automation, featuring a sensing distance of up to 100 mm and an IP67 rated enclosure for dust and water protection. With a blue LED light source at 450 nm and support for IO-Link and CANopen communication protocols, this sensor is perfect for barcode scanning and object detection in manufacturing lines, ensuring high performance and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 100 mm with ±10 mm tolerance
- Working range: 90 mm to 110 mm
- Light source: Blue LED, 450 nm wavelength
- Light spot size: 180 mm x 9 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: < 3 W
- Switching output: Push-pull PNP/NPN, max 100 mA
- Cycle time: 5 ms
- Process data length: 21 Byte
- Connection type: M12, 5-pin plug
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- LED risk group: 2 (IEC 62471)
- Communication: IO-Link COM3 (230.4 kBaud), CANopen
- Dimensions (H x L x W): 62mm x 52.5mm x 31mm
- Weight: 0.25 kg
Key Features
- Rectangular zinc diecast housing for durability
- Blue LED light source with 450 nm wavelength
- Sensing distance up to 100 mm with ±10 mm tolerance
- High ambient light immunity of 50,000 lx
- IP67 rated enclosure for dust and water protection
- Push-pull PNP/NPN switching output with short-circuit protection
- Supports IO-Link and CANopen communication protocols
- Operating temperature range from -10 °C to +55 °C
- LED risk group 2 compliant with IEC 62471
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for barcode scanning
- Object detection in manufacturing lines
- Quality control and tracking in logistics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption under 3 W reduces energy usage
- Durable zinc diecast housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK OLS20-BB1114149 Blue LED Optical Sensor is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
