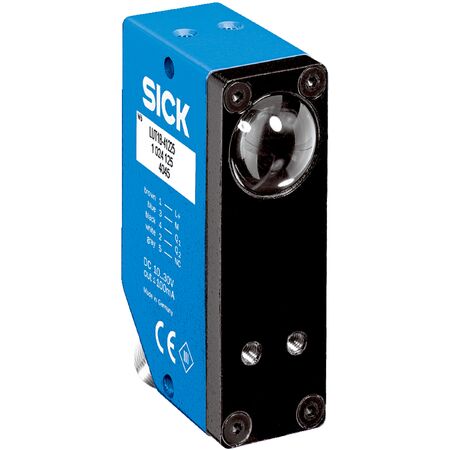

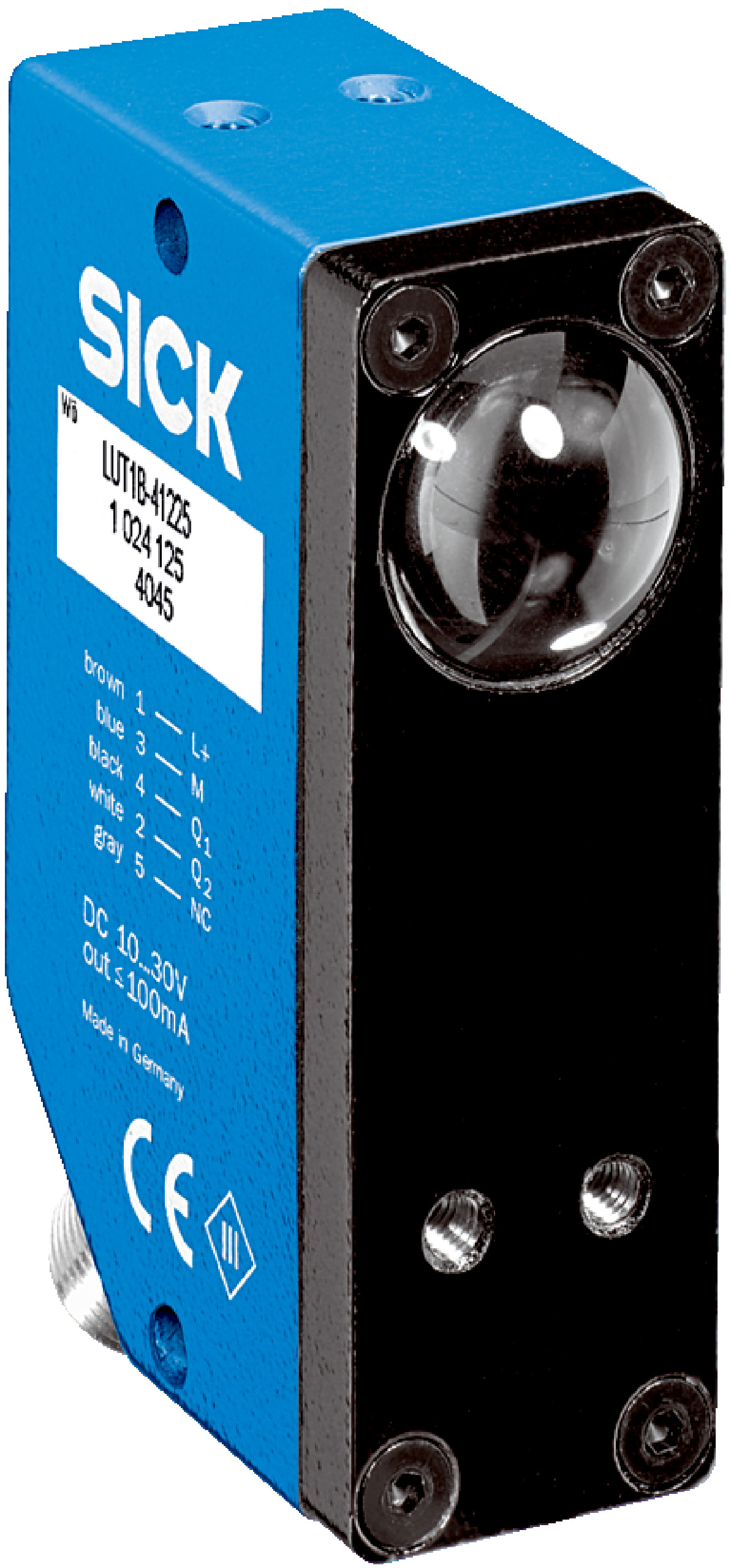

Blue LED Proximity Sensor | 150 mm Sensing Distance | PNP Light Switching Output | IP67 Rated | by SICK
The Blue LED Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing distance of up to 150 mm and a PNP light switching output. With a robust IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and quality inspection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blue LED Proximity Sensor | 150 mm Sensing Distance | PNP Light Switching Output | IP67 Rated | by SICK
Brand: SICK
SKU: 1024126
Alternatively Known As: Blue LED Proximity Sensor, PNP Light Sensor, Industrial Object Sensor, SICK Light Sensor LUT1B
Technical Specifications
- Sensing distance: ≤ 150 mm
- Working range: 60 mm to 160 mm
- Light source: Blue LED, 470 nm wavelength
- Light emission: Long side
- Light spot size: 6 mm x 14 mm
- Receiving filters: ≤ 590 nm
- Receiving range: 590 nm to 750 nm
- Adjustment: Double teach-in button
- Output function: Light switching
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: < 40 mA
- Switching frequency: 600 Hz
- Response time: 850 µs
- Switching output: PNP transistor
- Output voltage: HIGH ≤ 2 V, LOW approx. 0 V
- Output current max: 200 mA
- Connection type: Male M12, 5-pin connector
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Shock load: IEC 60068 compliant
- Dimensions (H x L x W): 70mm x 60mm x 23mm
- Weight: 0.24 kg
Key Features
- Blue LED light source with 470 nm wavelength
- Sensing distance up to 150 mm
- Light switching output with PNP transistor
- Double teach-in button for easy adjustment
- IP67 rated enclosure for dust and water protection
- Short-circuit and reverse polarity protected
- High switching frequency of 600 Hz
- Compact zinc diecast housing
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Quality control and inspection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable zinc diecast housing reduces waste through long product life
- IP67 rating ensures protection against environmental contaminants
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LUT1B-41235 Blue LED Light Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
