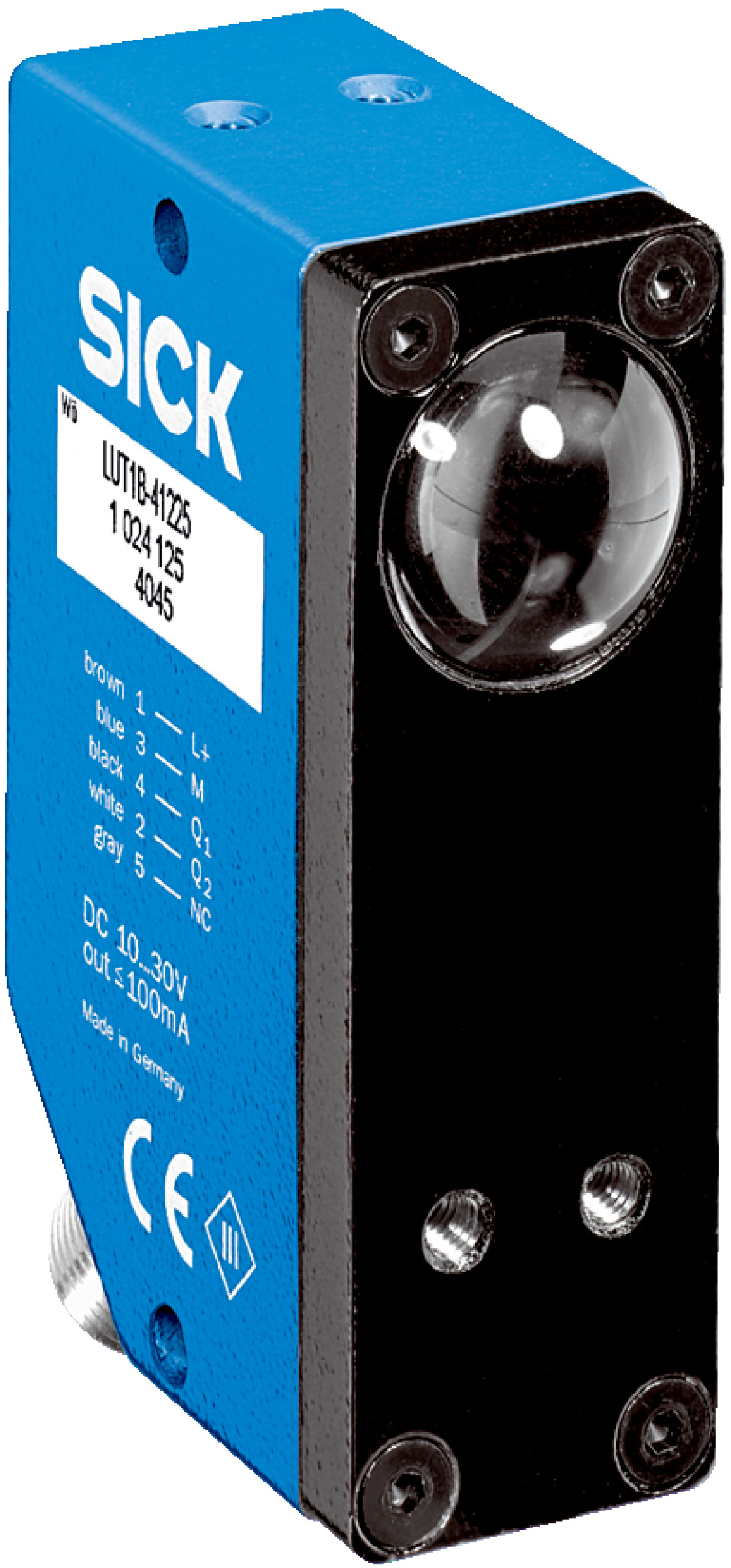

Blue LED Proximity Sensor | Sensing Distance ≤ 50 mm | PNP Output | IP67 Rated | by SICK
The Blue LED Proximity Sensor is designed for precise object detection with a sensing distance of up to 50 mm. Featuring a blue LED light source at 470 nm and a PNP output, this sensor is perfect for industrial automation and manufacturing applications. With an IP67 rating for dust and water protection, it ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blue LED Proximity Sensor | Sensing Distance ≤ 50 mm | PNP Output | IP67 Rated | by SICK
Brand: SICK
SKU: 1024125
Alternatively Known As: Blue LED Proximity Sensor, PNP Light Sensor, Industrial Object Sensor, SICK LUT1B Sensor
Technical Specifications
- Sensing distance: ≤ 50 mm
- Working range: 15 mm to 60 mm
- Light source: Blue LED, 470 nm wavelength
- Light emission: Long side
- Light spot size: 5 mm x 5 mm
- Receiving filters: ≤ 590 nm
- Receiving range: 590 nm to 750 nm
- Adjustment: Double teach-in button
- Output function: Light switching
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: < 40 mA
- Switching frequency: 600 Hz
- Response time: 850 µs
- Switching output: PNP
- Output voltage: PNP HIGH ≤ 2 V, LOW approx. 0 V
- Output current max: 200 mA
- Connection type: Male connector M12, 5-pin
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Shock load: According to IEC 60068
- Dimensions (H x L x W): 70mm x 47.5mm x 23mm
- Weight: 0.24 kg
Key Features
- Sensing distance up to 50 mm
- Blue LED light source with 470 nm wavelength
- Light emission from long side with 5 mm x 5 mm spot size
- Double teach-in button for easy adjustment
- PNP switching output with max 200 mA output current
- High switching frequency of 600 Hz and fast response time of 850 µs
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protected output
- Male M12 5-pin connector for connection
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with electrical safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Quality control and inspection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable zinc diecast housing extends product life reducing waste
- IP67 rating ensures protection against dust and water, minimizing environmental damage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

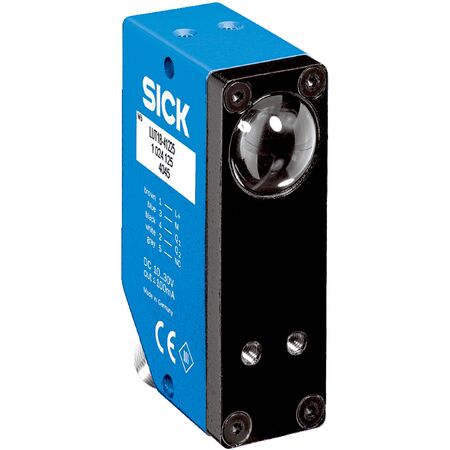

The SICK LUT1B-41225 Blue LED Light Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
