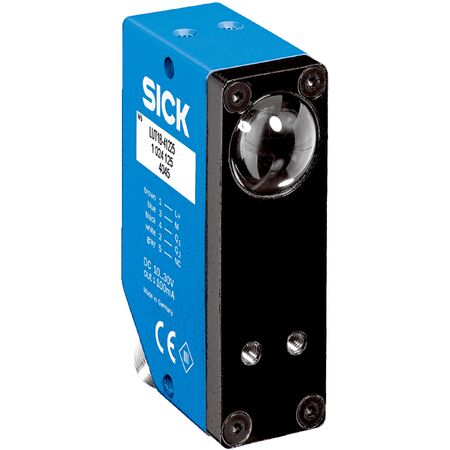

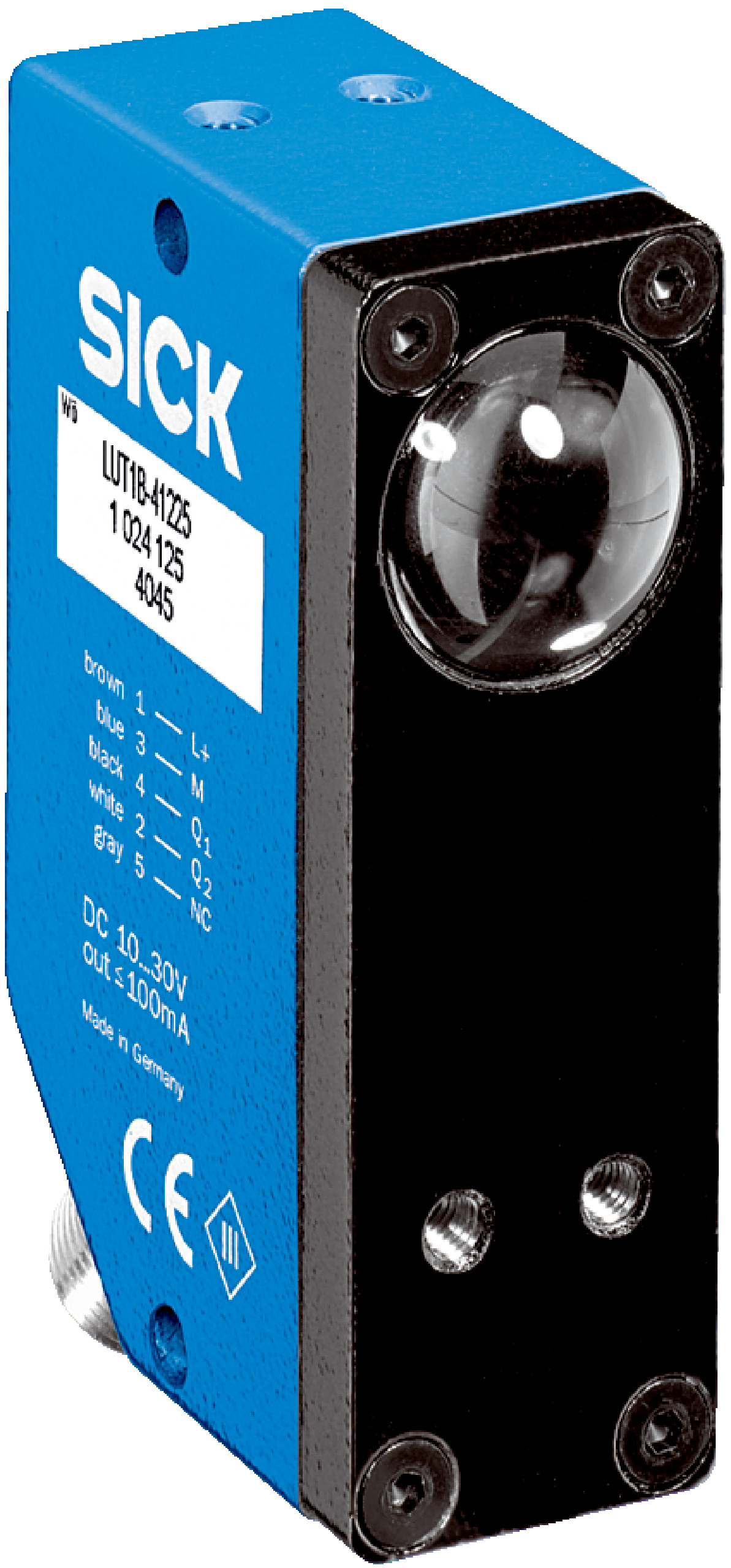

Blue LED Proximity Sensor | Sensing Distance ≤ 50 mm | PNP Output | IP67 Rated | by SICK
The Blue LED Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing distance of up to 50 mm and a blue LED light source with a 470 nm wavelength. With a fast response time of 85 µs and an IP67 rated enclosure, this sensor is perfect for manufacturing process control and quality inspection, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blue LED Proximity Sensor | Sensing Distance ≤ 50 mm | PNP Output | IP67 Rated | by SICK
Brand: SICK
SKU: 1024127
Alternatively Known As: Blue LED Proximity Sensor, PNP Output Sensor, Industrial Object Sensor, SICK LUT1B Sensor
Technical Specifications
- Sensing distance: ≤ 50 mm
- Working range: 15 mm to 60 mm
- Light source: Blue LED, 470 nm wavelength
- Light spot size: 5 mm x 5 mm
- Output function: Light switching with PNP output
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 40 mA
- Switching frequency: 6 kHz
- Response time: 85 µs
- Connection type: Male connector M12, 5-pin
- Protection class: III
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Dimensions (H x L x W): 70mm x 47.5mm x 23mm
- Weight: 0.24 kg
Key Features
- Sensing distance up to 50 mm
- Blue LED light source with 470 nm wavelength
- Light emission from long side with 5 mm x 5 mm light spot size
- Double teach-in button for easy adjustment
- PNP switching output with max 200 mA output current
- High switching frequency of 6 kHz and fast response time of 85 µs
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protected output
- Male connector M12, 5-pin connection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Quality control and inspection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable zinc diecast housing extends product life reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LUT1B-11325 Blue LED Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
