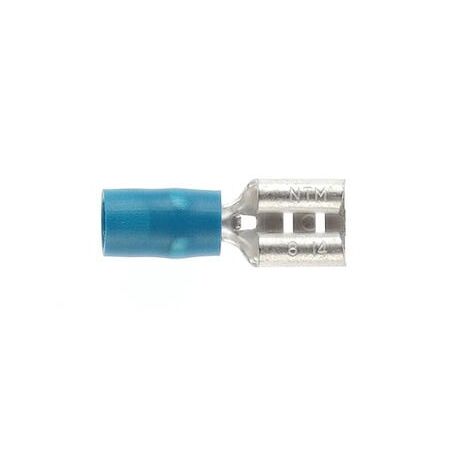

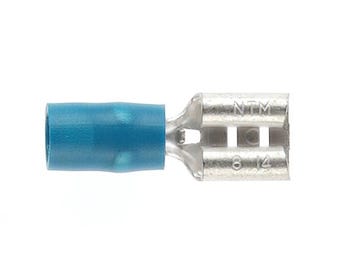

Blue Quick Connect Terminal 2.8 x 8mm | Double Grip | PVC Insulated by Cabac
Blue quick connect terminal with 2.8 x 8mm dimensions and double grip—ideal for electrical wiring connections. Built for reliable electrical integrity, with PVC insulation to reduce installation errors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blue Quick Connect 2.8 X 8mm Tab Dg
Brand: Cabac
SKU: QC2-2.8DG
Alternatively Known As: Quick Connect Terminal 2.8mm, Blue Quick Connect Terminal, Double Grip Terminal 2.8 x 0.8mm, Pre-insulated Electrical Terminal
Technical Specifications
- Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
- Tensile Strength: 580 MPa
- Ductile Rating: 6% min
- Final Metal State: Annealed
- Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
- Electroplating Material: Tin with 99.9% Tin Content
- Plating Thickness: 2.5 microns
- Insulation Material: PVC
- Breakdown Voltage: 1.5kV (min)
- Insulation Resistance: Above 100 meg ohms
- Working Voltage: Up to 300V AC/DC
- Torque Recommendations: Metric 8.8 tensile grade hardware
- Dimensions (H x L x W): 2.8mm x 20mm x 8mm
- Weight: 0.1 kg
Key Features
- High quality product meeting International Standards
- Funnel entry terminals allow easy conductor entry, minimizing substandard crimps
- Long term electrical integrity
- Translucent nylon in fully insulated quick connector reduces installation errors
- Voltage rating 300V
- Double grip - separate crimp barrels for conductor and insulation
- PVC insulated to reduce installation errors
Professional Installation Requirements
- Terminals should be crimped onto the conductor with a quality crimper designed for this specific terminal type to ensure secure and reliable connections.
Applications
- Electrical wiring connections in switchgear
- Contactors and terminal blocks
- General electrical and power connectivity applications
Standards & Compliance
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
- Conforms to AS 3169 and AS 4437
Environmental Benefits
- Durable materials reduce need for frequent replacements
- PVC insulation designed to minimize environmental impact
- Long-lasting electrical integrity reduces waste
Warranty Information
Warranty details available upon request from manufacturer; typically covered against manufacturing defects.
Available Now
The Cabac Blue Quick Connect 2.8 x 0.8mm Double Grip Terminal is available for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable and safe terminal connections.
