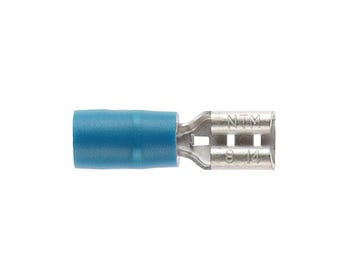

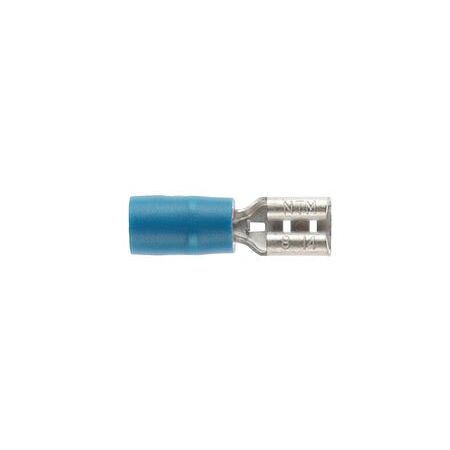

Blue Quick Connect Terminal 4.8 x 0.8mm | Double Grip | PVC Insulated by Cabac
Blue quick connect terminal with 4.8 x 0.8mm size and double grip—ideal for electrical wiring connections. Built for industrial and commercial use, with PVC insulation for reduced installation errors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Blue Quick Connect 4.8 X 0.8mm Tab Dg
Brand: Cabac
SKU: QC2-4.8DG
Alternatively Known As: Quick Connect Terminal 4.8mm, Blue Quick Connect Terminal, Double Grip Terminal 4.8 x 0.8mm, Pre-insulated Electrical Terminal
Technical Specifications
- Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
- Tensile Strength: 580 MPa
- Ductile Rating: 6% min
- Final Metal State: Annealed
- Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
- Electroplating Material: Tin with 99.9% Tin Content, 2.5 microns plating thickness
- Insulation Material: PVC (except nylon 6 or nylon 66 for FIQC)
- Breakdown Voltage: 1.5kV (min)
- Insulation Resistance: Above 100 meg ohms
- Working Voltage: Up to 300V AC/DC
- Conformant Standards: AS3169, AS4437 Australia, CSA Canada, IEC Europe, UL Nema USA, and others
- Dimensions (H x L x W): 0.8mm x 20mm x 4.8mm
- Weight: 0.1 kg
Key Features
- High quality product meeting International Standards
- Funnel entry terminals allow easy conductor entry, minimizing substandard crimps
- Long term electrical integrity
- Translucent nylon in fully insulated quick connector reduces installation errors
- Voltage rating 300V
- Double grip - separate crimp barrels for conductor and insulation
- PVC insulated to reduce installation errors
Professional Installation Requirements
- All terminals should be crimped onto the conductor with a quality crimper designed for the specific terminal type to ensure proper installation and electrical integrity.
Applications
- Electrical wiring connections in switchgear, contactors, terminal blocks
- Industrial and commercial electrical installations
- Automotive and machinery electrical connections
Standards & Compliance
- AS3169 – Electrical Connectors
- AS4437 – Insulated Electrical Connectors
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- PVC insulation designed to minimize installation errors, reducing waste
- Conforms to international standards ensuring safe and efficient electrical connections
Warranty Information
Warranty against manufacturing defects as per Cabac standard policy.
Available Now
The Cabac Blue Quick Connect 4.8 x 0.8mm Double Grip Terminal is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable and safe terminal connections.
