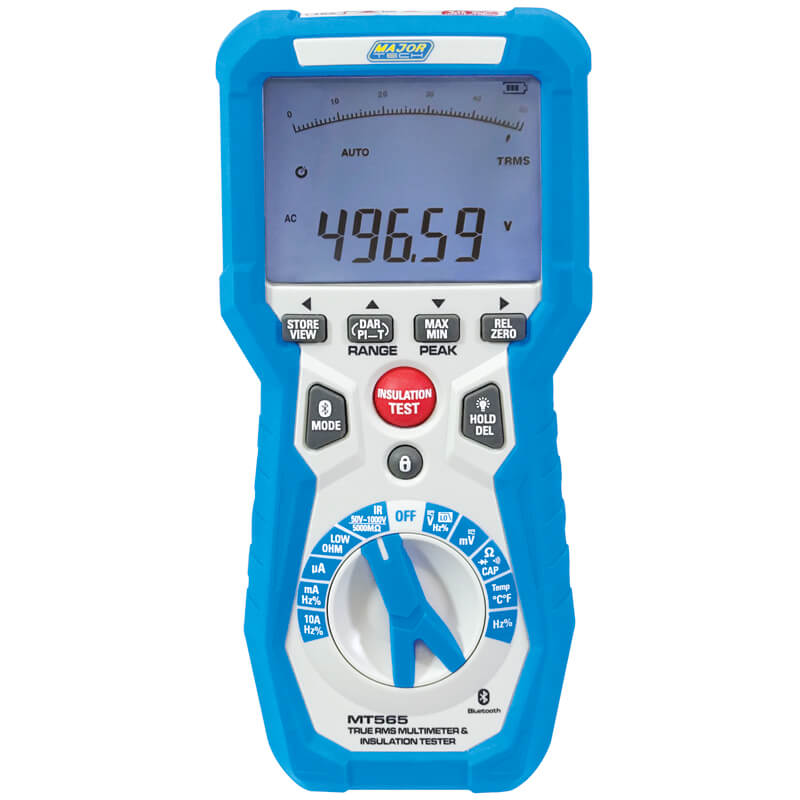

Bluetooth Insulation Tester and Multimeter | 0.01mV to 1000V | True RMS & Bluetooth Data Transfer | 5000MΩ by Majortech
Bluetooth insulation tester and multimeter with a voltage range of 0.01mV to 1000V and insulation resistance up to 5000MΩ—ideal for electrical troubleshooting and maintenance. Built for qualified electricians, it features Bluetooth data transfer for easy record-keeping and a True RMS function for accurate measurements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bluetooth Insulation Tester and Multimeter | 0.01mV to 1000V | True RMS & Bluetooth Data Transfer | 5000MΩ by Majortech
Brand: Majortech
SKU: MT565
Alternatively Known As: Bluetooth Insulation Tester, Bluetooth Multimeter, Insulation Resistance Tester, True RMS Multimeter, Electrical Tester with Bluetooth
Technical Specifications
- AC Voltage Range: 0.01mV to 1000V, Accuracy: ±(1.0% + 5 digits)
- DC Current Range: 0.01μA to 10A, Accuracy: ±(0.1% + 3 digits)
- AC Current Range: 0.01μA to 10A, Accuracy: ±(1.5% + 3 digits)
- Duty Cycle Range: 5 to 95%, Accuracy: ±(1% + 2 digits)
- Resistance Range: 0.01Ω to 50MΩ, Accuracy: ±(1% + 4 digits)
- Frequency Range: 0.001Hz to 50MHz, Accuracy: ±(0.3% + 2 digits)
- Capacitance Range: 0.01nF to 5.000mF, Accuracy: ±(3.5% + 9 digits)
- Temperature Range: -50 to 1200°C, Accuracy: ±(1.0% + 2.5°C)
- Insulation Test Voltage Ranges: 50V, 100V, 250V, 500V, 1000V
- Insulation Resistance Range: up to 5000MΩ, Accuracy: ±(3.0% to 4.0% + 5 digits)
- Low Ohm Function Resolution: 1mA, Open Circuit Voltage: 5V
- Dimensions (H x L x W): 90mm x 45mm x 180mm
- Weight: 0.5 kg
Key Features
- Combination of True RMS multimeter and insulation continuity tester
- Bluetooth communication with internal memory for data storage and transfer
- 50,000 count LCD dual display with analogue bargraph
- CAT IV 600V safety rating
- Low pass filter for accurate measurement of variable frequency drive (VFD) signals
- Insulation tester with 50V, 100V, 250V, 500V, and 1000V ranges
- Insulation resistance up to 5000MΩ with DAR and Auto PI functions
- Low Ohm function with 1mA resolution and 5V open circuit voltage
- Bluetooth app available on Android and iOS
Professional Installation Requirements
- Professional installation is not required; however, use by qualified electricians is recommended for safety and accuracy.
Applications
- Electrical troubleshooting and maintenance
- Preventative maintenance for industrial and mining applications
- Measurement of AC/DC voltage, current, resistance, capacitance, frequency, duty cycle, and temperature
- Insulation testing in electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Bluetooth data transfer reduces the need for paper records
- Energy-efficient design extends battery life and reduces waste
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Majortech Bluetooth Insulation Tester and Multimeter MT565 is available now for immediate purchase. Ideal for mining, industrial, and electrical maintenance applications.
