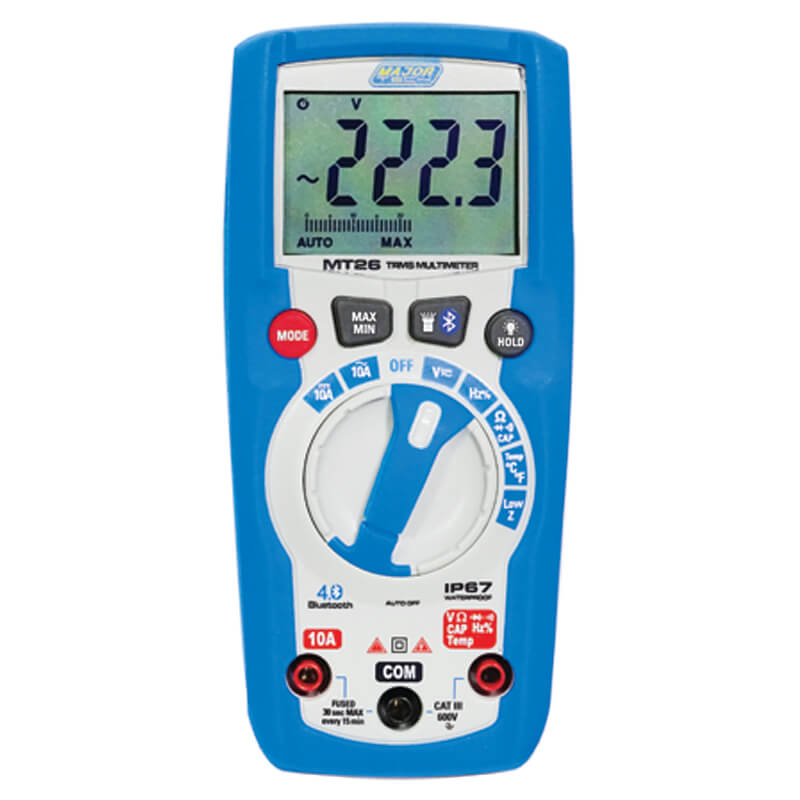

Bluetooth Multimeter 600V AC DC True RMS Low Z Majortech
Majortech Bluetooth Multimeter features 600V AC DC true RMS measurement, 10A current range and low-Z mode. Bluetooth data logging.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- AC Voltage Range: 0.1mV to 600V, Accuracy: ±(1.0% + 5 digits)
- DC Current Range: 1mA to 10A, Accuracy: ±(2.0% + 3 digits)
- AC Current Range: 1mA to 10A, Accuracy: ±(2.5% + 3 digits)
- Duty Cycle Range: 1.0% to 99.90%, Accuracy: ±(1.2% + 2 digits)
- Resistance Range: 0.1Ω to 40.00MΩ, Accuracy: ±(1.5% + 5 digits)
- Frequency Range: 0.001Hz to 9.999MHz, Accuracy: ±(1.0% + 5 digits)
- Capacitance Range: 10pF to 4000μF, Accuracy: ±(3.0% + 5 digits)
- Temperature Range: -18°C to 760°C, Accuracy: ±(2.0% + 5°C)
- Dimensions (H x L x W): 150mm x 40mm x 75mm
- Weight: 0.3 kg
Key Features
- CAT III 600V True RMS measurement for AC and DC voltage and current
- Bluetooth connectivity for data transmission to Android and iOS apps
- Large 4000 count backlit LCD with analogue bargraph
- Low Z function with low pass filter to eliminate ghost voltages
- Built-in LED flashlight for use in dimly lit areas
- Double moulded rubber case for durability
- Tilt stand for hands-free operation
Professional Installation Requirements
- Professional installation is not required; however, use by qualified personnel is recommended for safety and accuracy.
Applications
- Residential electrical measurements and troubleshooting
- Industrial and commercial electrical testing
- HVAC system diagnostics
- Electronics and electrical engineering
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Bluetooth data transmission reduces paper usage by enabling digital record keeping
- Energy-efficient design extends battery life and reduces waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Majortech 600V AC/DC True RMS Bluetooth Multimeter MT26 is available now for immediate purchase. Ideal for residential, industrial, and commercial electrical testing applications.
