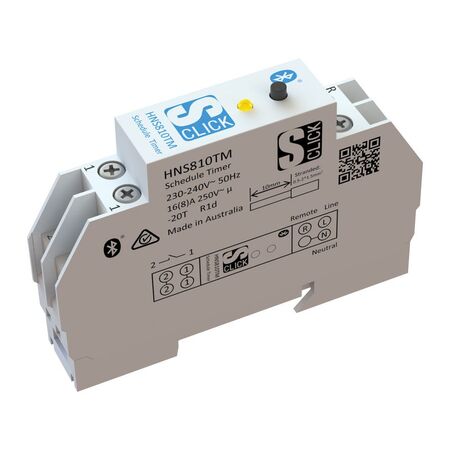

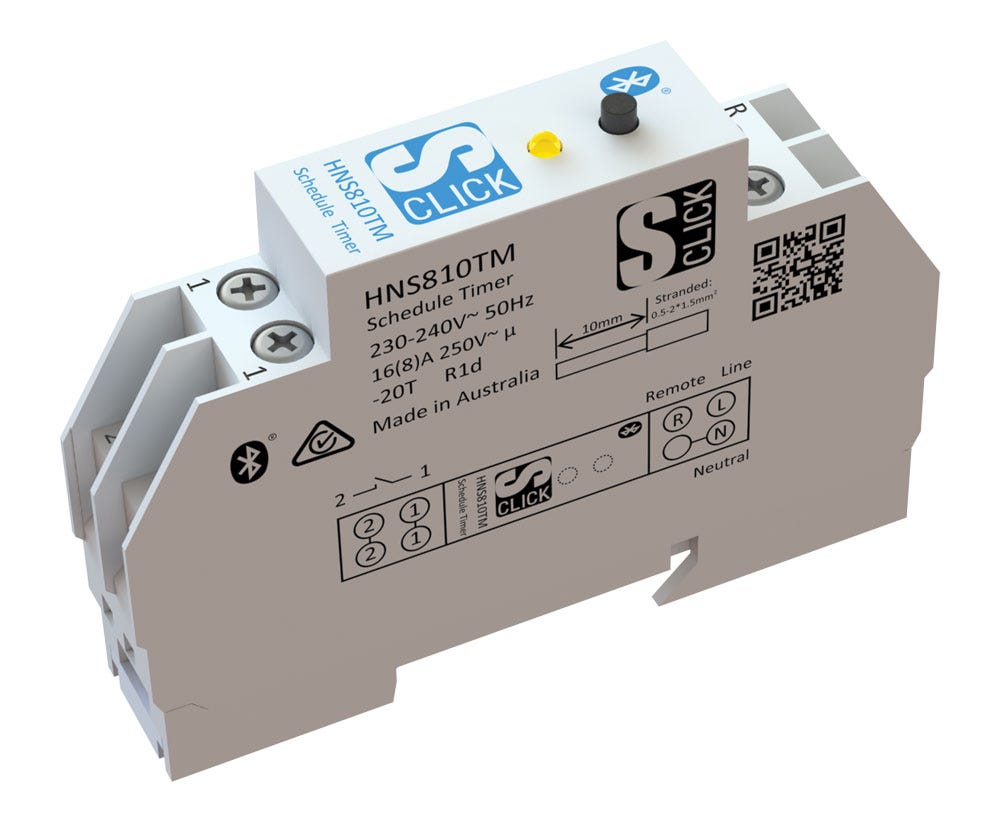

Bluetooth Single Module Digi Time Switch | 70 ON/OFF Programs | EEPROM Memory | @EA of 1 | by Cabac
The Bluetooth Single Module Digi Time Switch offers Bluetooth low-energy connectivity and supports up to 70 ON/OFF programs per day, making it perfect for automated scheduling of lighting and electrical devices. With a robust EEPROM memory that retains programs for over 99 years and a supercapacitor for clock backup, this timer switch is designed for both residential and commercial applications, ensuring energy efficiency and convenience.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Bluetooth low-energy connectivity
- 70 ON/OFF programmes per day
- 7 day programme with 980 memory spaces
- EEPROM memory retains programs for over 99 years
- Supercapacitor clock backup for product life
- Automatic Daylight Savings adjustment
- Pulse mode with minimum 1 second
- Service counter with 4 parameters
- 17.5mm DIN rail mounting
- LED indicator for switch status and Bluetooth sync
- OTA firmware upgradeable
- Dimensions (H x L x W): 90mm x 60mm x 17.5mm
- Weight: 0.1 kg
Key Features
- Bluetooth low-energy connectivity for easy programming
- Supports up to 70 ON/OFF programmes per day
- 7 day programme with up to 980 memory spaces
- Programs stored for 99+ years in EEPROM memory
- Advanced supercapacitor for clock backup throughout product life
- Automatic Daylight Savings function (default ON)
- Pulse mode with minimum 1 second duration
- Service counter with 4 parameters: device uptime, total load ON time, load ON time since last reset, last reset date
- Standard 17.5mm DIN rail mounting
- Illuminated LED indicator for switch status and Bluetooth sync
- Over the Air (OTA) firmware upgradeable via S-Click app
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Lighting control in residential and commercial switchboards
- Automated scheduling for electrical devices
- Remote site schedule management
- Energy management and load control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise scheduling to reduce unnecessary power consumption
- Supports energy saving through automated device control
- Long-lasting supercapacitor reduces battery waste
Warranty Information
Standard manufacturer warranty applies; typically 2 years against manufacturing defects.
Available Now
The Cabac Bluetooth Single Module Digi Time Switch HNS810TM is available for immediate purchase, ideal for lighting and electrical load scheduling in residential and commercial switchboards.
