Bluetooth Multi-Function Time Switch | 2 Channels | Quartz Sync | Hager

BRAND: :hager
SKU: EGN200AU
$323.80 List price: $414.10
+ −
30 Days Return Delivery Options
Multi-function time switch with two channels and Bluetooth connectivity—ideal for smart lighting and appliance control. Built for residential and commercial use, with quartz synchronization for precise timekeeping.

Product Name/Title: Multi-function time switch 2 channels bluetooth

Brand: Hager

SKU: EGN200AU

Alternatively Known As: Bluetooth Time Switch, Multi-channel Timer, Smart Timer Switch

Technical Specifications
  • Nominal Voltage: 230 - 240 V
  • Frequency: 50 - 60 Hz
  • Max Load for Incandescent and Halogen Lamps: 2300 W
  • Max Load for Fluorescent Lamps: 1000 W
  • Accuracy per Day: 0.25 s
  • Operating Temperature: -5 to +45 °C
  • Connection Type: 1x changeover with screw terminal
  • Flexible Conductor Cross-section: 0.2 - 2.5 mm²
  • Rigid Conductor Cross-section: 0.2 - 4 mm²
  • Daily, Weekly, and Annual Programming Options

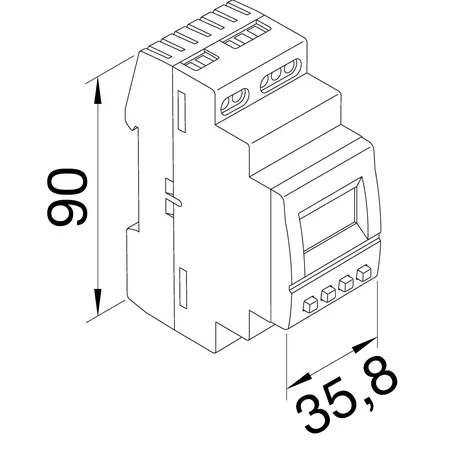

  • Dimensions (H x L x W): 90mm x 62mm x 36mm
  • Weight: 0.5 kg
Key Features
  • Two channels for versatile control of lighting and appliances.
  • Bluetooth connectivity for easy programming and control.
  • Quartz synchronization for accurate timekeeping.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and smart lighting systems
  • Commercial: Offices, retail spaces, and energy management
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
  • Designed to improve energy efficiency and reduce carbon footprint.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager Multi-function Time Switch 2 Channels Bluetooth is available now for immediate purchase. Ideal for residential and commercial energy management applications.

EGN200AU (EGN200AU, 200 Kb) [Download]

reach_declaration_EGN200AUP1.pdf (reach_declaration_EGN200AUP1.pdf, 103 Kb) [Download]

rohs_declaration_EGN200AUP1.pdf (rohs_declaration_EGN200AUP1.pdf, 104 Kb) [Download]

6LE005569B_EGN200-400AU_L_A4_B_EN_WEB.pdf (6LE005569B_EGN200-400AU_L_A4_B_EN_WEB.pdf, 1,007 Kb) [Download]

6LE005569C_EGN200-400AU_Time_switch_BT_Leaflet_EN-FR_2024.pdf (6LE005569C_EGN200-400AU_Time_switch_BT_Leaflet_EN-FR_2024.pdf, 721 Kb) [Download]

(6LE007392C_QUICKGUIDE_EGN100-200-400_L_A4_Q_EN_WEB.pdf, 7,470 Kb) [Download]

(BLUETOOTH_TIME_SWITCHES_BROCHURE.pdf, 924 Kb) [Download]

EUDOC_0039.04-2023.pdf (EUDOC_0039.04-2023.pdf, 316 Kb) [Download]
