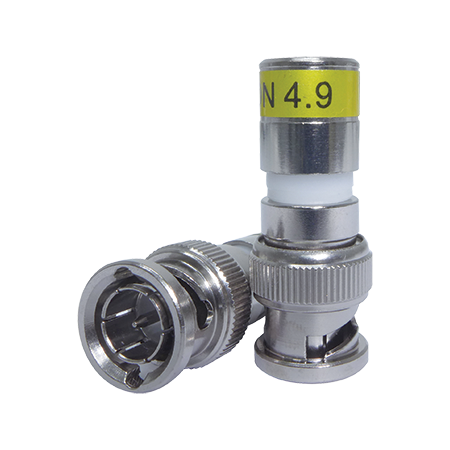

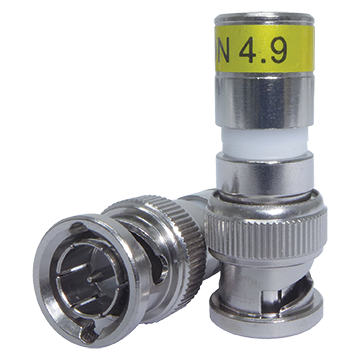

BNC Male RG6 Compression Connector | Secure & Reliable | 50 Pack by Matchmaster
BNC male compression connector for RG6 coaxial cables, providing secure and reliable connections—ideal for television, security, and broadcasting applications. Built for extensive use, with a pack of 50 for versatile installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: BNC Male RG6 Compression Connector (50 Pack)
Brand: Matchmaster
SKU: 08MM-B12
Alternatively Known As: BNC RG6 Compression Connector, BNC Male Coaxial Connector, RG6 BNC Plug, Compression BNC Connector
Technical Specifications
- Connector Type: BNC Male
- Cable Compatibility: RG6 75 Ohm coaxial cables
- Frequency Range: DC to 3GHz
- Sealing: IP68 rated compression technology
- Material Finish: Nickel-plated
- Cycle Life: Greater than 500 cycles
- Center Pin: Integrated spring finger
- Dimensions (H x L x W): 15mm x 40mm x 15mm
- Weight: 0.05 kg
Key Features
- Professional grade Cabelcon compression BNC male connector for RG6 75 Ohm cables from DC-3GHz
- BNC male with twist lock for durability and secure connection
- Used with Matchmaster compression tool (08MM-CT07)
- High-quality nickel-plated finish for long-life corrosion resistance
- Suitable for 3G SDI
- Integrated spring finger centre pin
- Perfect sealing to IP68 due to compression technology
- Improves VSWR and provides excellent return loss from DC to 3GHz
Professional Installation Requirements
- Professional installation using the Matchmaster compression tool (08MM-CT07) is recommended for optimal performance and secure connections.
Applications
- Video and audio links for HD-SDI, SD-SDI, and CVBS connections
- Custom-made cables for professional video and audio installations
- Regular patching on bulkheads in broadcast and AV setups
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel-plated finish extends product life reducing waste
- Compression technology ensures secure connections reducing signal loss and need for replacements
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster BNC Male RG6 Compression Connector (50 Pack) is available now for immediate purchase. Ideal for professional video and audio cable assembly and maintenance.
