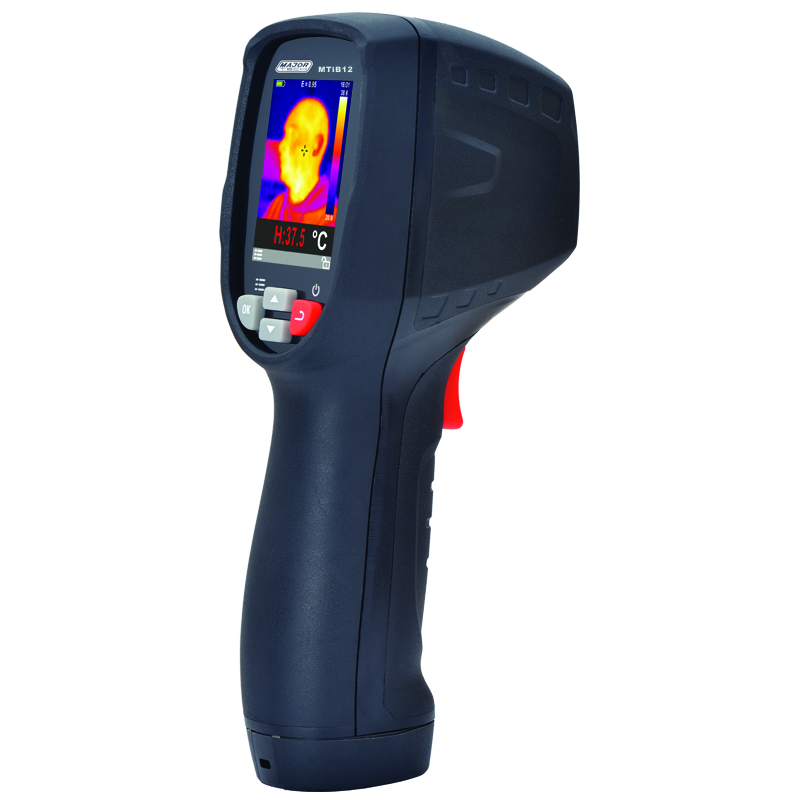

Body & Surface Thermal Imager | -20°C to +380°C | 80 x 80 IR Resolution | Bluetooth & 22 Colour Display by Majortech
Handheld body and surface thermal imager with a temperature range of -20°C to +380°C and 80 x 80 IR resolution—ideal for health screening and industrial maintenance. Built for easy use with Bluetooth sharing and a vibrant 22 colour TFT LCD display.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Body & Surface Thermal Imager | -20°C to +380°C | 80 x 80 IR Resolution | Bluetooth & 22 Colour Display by Majortech
Brand: Majortech
SKU: MTiB12
Alternatively Known As: Thermal Camera, Infrared Thermometer, Thermal Imaging Camera, Body Temperature Scanner, Surface Temperature Imager
Technical Specifications
- Field of View: 21° x 21°
- Spatial Resolution (IFOV): 4.53 mrad
- Thermal Sensitivity/NETD: <0.1°C @ +30°C / 100mK
- Image Range: 50Hz
- Focus Mode: Focus Free
- Focal Length: 7.5mm
- Focal Plane Array (FPA)/Spectral Range: Uncooled microbolometer / 8-14µm
- IR Resolution: 80 x 80 pixels
- Display: 22 colour TFT LCD, 240 x 320 pixels
- Image Modes: IR Image
- Colour Palettes: Iron, Rainbow, Grey, Grey Inverted, Rainbow high contrast
- Temperature Range: -20°C to +380°C
- Temperature Accuracy: ± (2.0% + 2°C)
- Body Temperature Range: +32°C to +42°C
- Body Temperature Accuracy: ± 0.5°C
- Image Format: Bitmap (BMP) including measurement data
- Size: 175 x 58 x 70 mm
- Weight: 450 g
- Dimensions (H x L x W): 175mm x 70mm x 58mm
- Weight: 0.45 kg
Key Features
- Handheld thermal imaging camera
- 20mS sampling rate for scanning multiple targets
- Adjustable high alarm for instant identification of elevated body temperature
- Thermal images displayed on 22 colour TFT LCD
- Internal memory for image storage
- Bluetooth and instant share function for smartphone transfer
Professional Installation Requirements
- No professional installation required. Device is handheld and ready to use out of the box with user manual guidance.
Applications
- Body temperature measurement for health screening
- Predictive maintenance
- Equipment troubleshooting
- Verification tasks in industrial and specialist environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact temperature measurement reduces contamination risk
- Energy-efficient operation with low power consumption
- Supports preventive maintenance to extend equipment life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Majortech warranty policy for details.
Available Now
The Majortech MTiB12 Body & Surface Thermal Imager is available now for immediate purchase. Ideal for health screening, industrial maintenance, and specialist thermal imaging applications.
