Bolt-Slim-60 LED Batten Diffused Tri-Colour IP20 Non-Sensor Domus

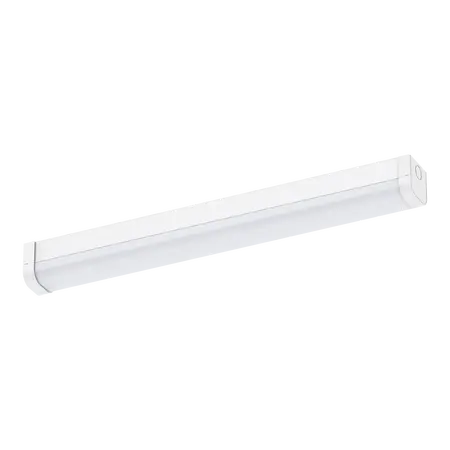

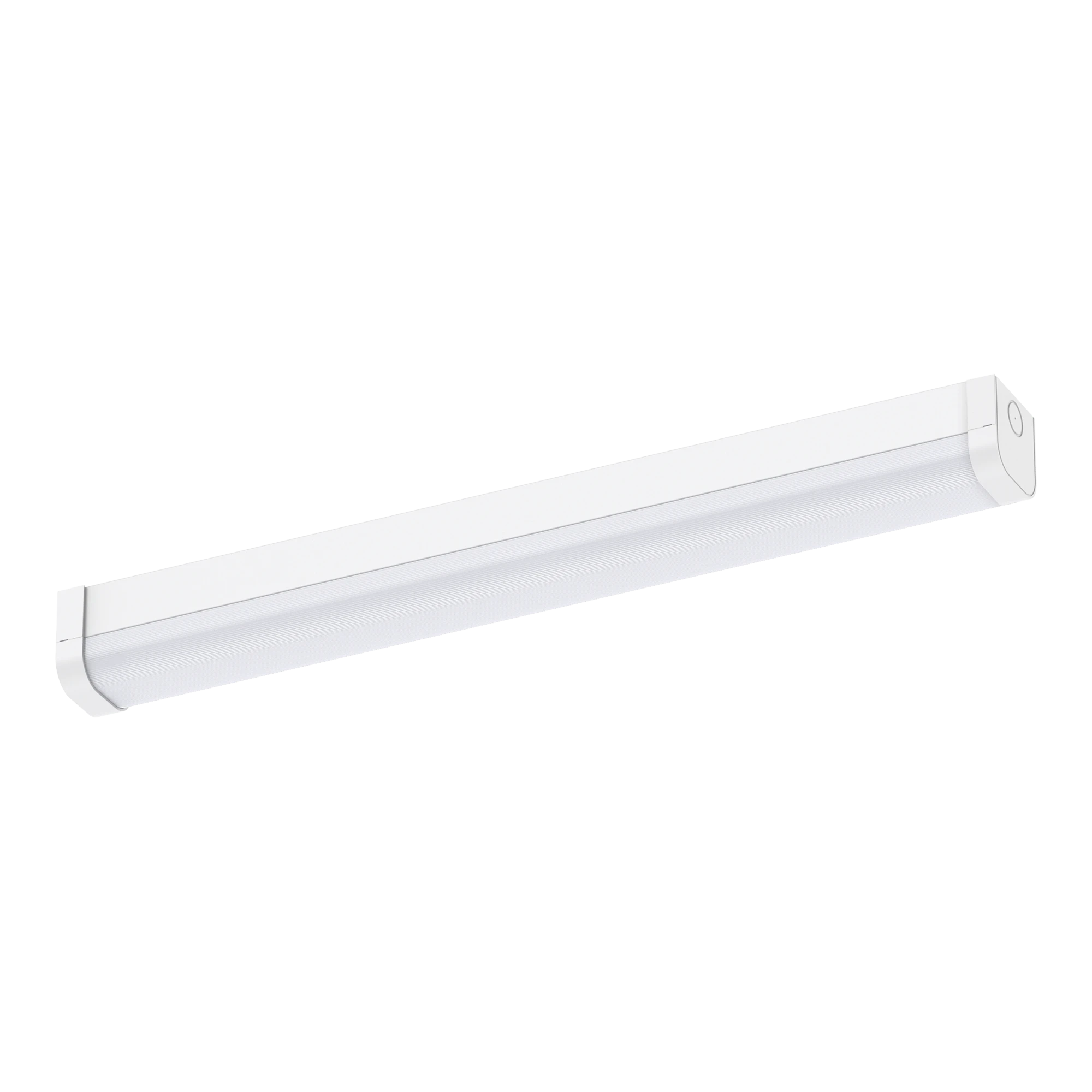

Domus Bolt-Slim-60 diffused LED batten, 600mm, tri-colour, IP20, non-sensor.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 600mm LED Batten, Slim LED Batten, Diffused LED Batten, LED Fluorescent Replacement Batten
Technical Specifications
- Product Code: 66136
- Length: 600mm
- Wattage: 10W / 13W / 16W / 20W selectable
- Colour Temperature: 3000K / 4000K / 5700K selectable
- Input Voltage: 240V AC
- IP Rating: IP20
- Dimming: Non-dimmable
- Light Distribution: Diffused
- Mounting: Surface or suspended
- Diffuser: Opal polycarbonate
- Body: Pressed sheet metal with white powder-coated finish
- CRI: ≥80
- Beam Angle: 120°
- Dimensions (H x L x W): 40mm x 600mm x 60mm
- Weight: 1.2 kg
Key Features
- Tri-colour selectable LED lighting
- Quad-wattage selectable via driver switch
- Diffused light output for even illumination
- Slim 600mm format for compact installations
- Quick-fix design for simplified installation
- Suitable replacement for traditional T8 and T5 fluorescent battens
- Non-sensor configuration
- Suitable for residential and commercial indoor applications
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with the manufacturer's installation instructions and AS/NZS 3000 Wiring Rules. The fitting operates at 240V AC.
Applications
- Laundries
- Garages and workshops
- Storerooms
- Corridors
- Offices and retail interiors
- Residential and commercial indoor lighting upgrades
Standards & Compliance
- AS/NZS 60598.1: Applicable general safety standard for luminaires; model-specific conformity should be confirmed from the manufacturer's declaration.
- AS/NZS 3000: Electrical installation and wiring requirements applicable to the 240V AC installation.
Environmental Benefits
- LED technology can reduce electricity consumption compared with equivalent fluorescent lighting
- Mercury-free light source compared with fluorescent tubes
- Longer service life can reduce replacement frequency and product waste
- Selectable wattage supports right-sizing of energy use for the installation
Warranty Information
Domus Lighting replacement warranty: 5 years for residential applications and 3 years for commercial applications for LED battens purchased after 1 July 2024, subject to licensed-electrician installation, proof of purchase and compliance with the installation instructions. Older purchases may be covered under the previous warranty schedule.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
