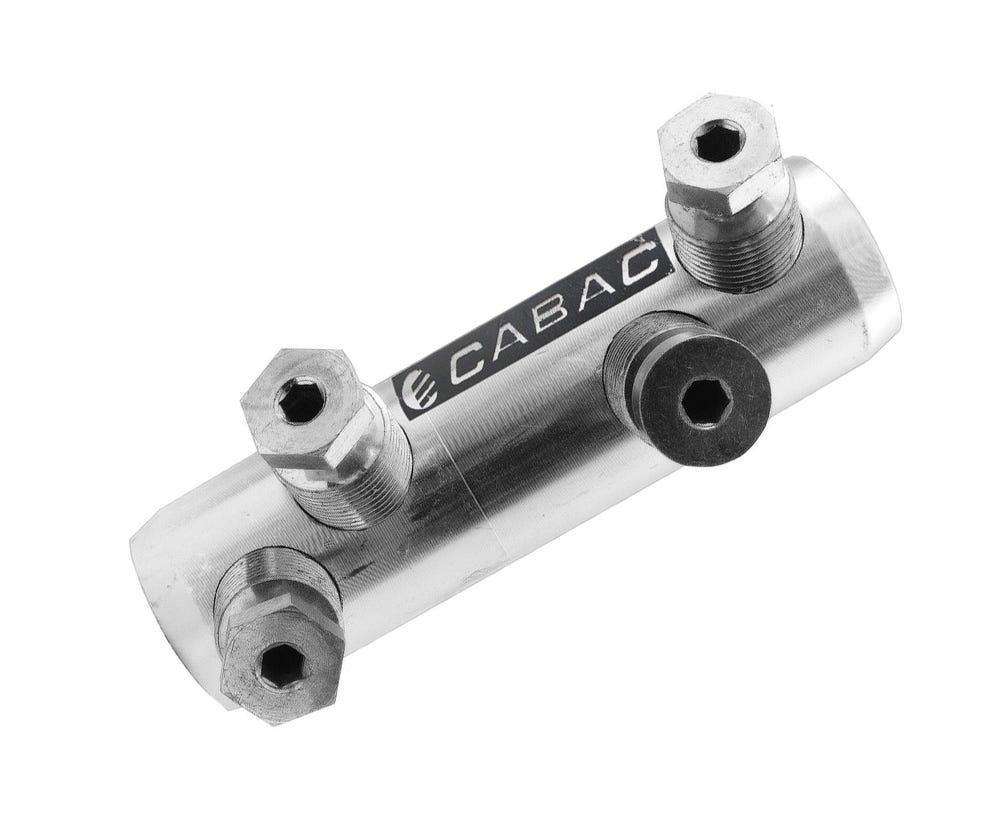

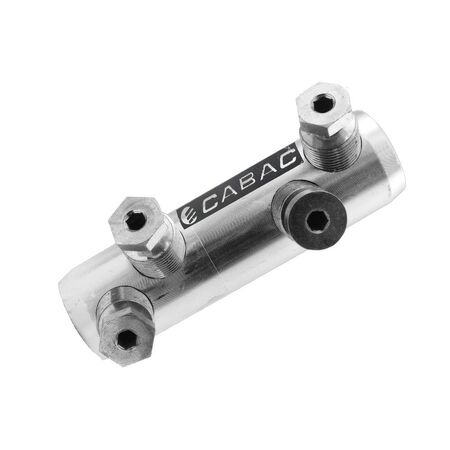

Bolted Al Link 150-50mm2 | Up to 1000V | Shear Bolt Technology | Tin Plated | @EA of 1 | by Cabac
The Bolted Al Link 150-50mm2 is designed for low voltage electrical connections up to 1000 volts, featuring proven shear bolt technology for a secure connection. Made from high-strength tin-plated aluminium alloy, it accommodates both solid and stranded conductors, making it ideal for residential, commercial, and industrial applications. Simple installation with an Allen key eliminates the need for crimping tools, ensuring a reliable and efficient setup.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage rating: Up to 1000 volts
- Material: High strength aluminium alloy, tin plated
- Conductor compatibility: Solid and stranded, sector or circular aluminium or copper
- Connection method: Shear bolt technology with grooved inner barrel surface
- Installation tool: Allen key
- Tested to AS4325 standard
- Dimensions (H x L x W): 20mm x 100mm x 150mm
- Weight: 0.15 kg
Key Features
- Tin plated - designed to be bolted to copper or aluminium solid or stranded, sector or circular conductors
- Proven shear bolt technology for the perfect connection
- Grooved surface on inner wall breaks conductor oxide layers for low resistance connection
- Specially chamfered to eliminate sharp corners
- Simple installation eliminating the need for crimping tools
- Conforms to Australian and many international standards
Professional Installation Requirements
- Installation requires a qualified electrician using an allen key to tighten shear bolts to the correct torque.
Applications
- Low voltage electrical connections up to 1000 volts
- Suitable for solid and stranded, sector or circular aluminium or copper conductors
- Electrical power connectivity in residential, commercial, and industrial installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Tested to AS4325 standard
Environmental Benefits
- Tin plating allows for mixed conductor use reducing material waste
- Durable aluminium alloy construction extends product life and reduces replacement frequency
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Bolted Aluminium Link 150-50mm2 is available for immediate purchase, ideal for low voltage electrical connectivity in various applications.
