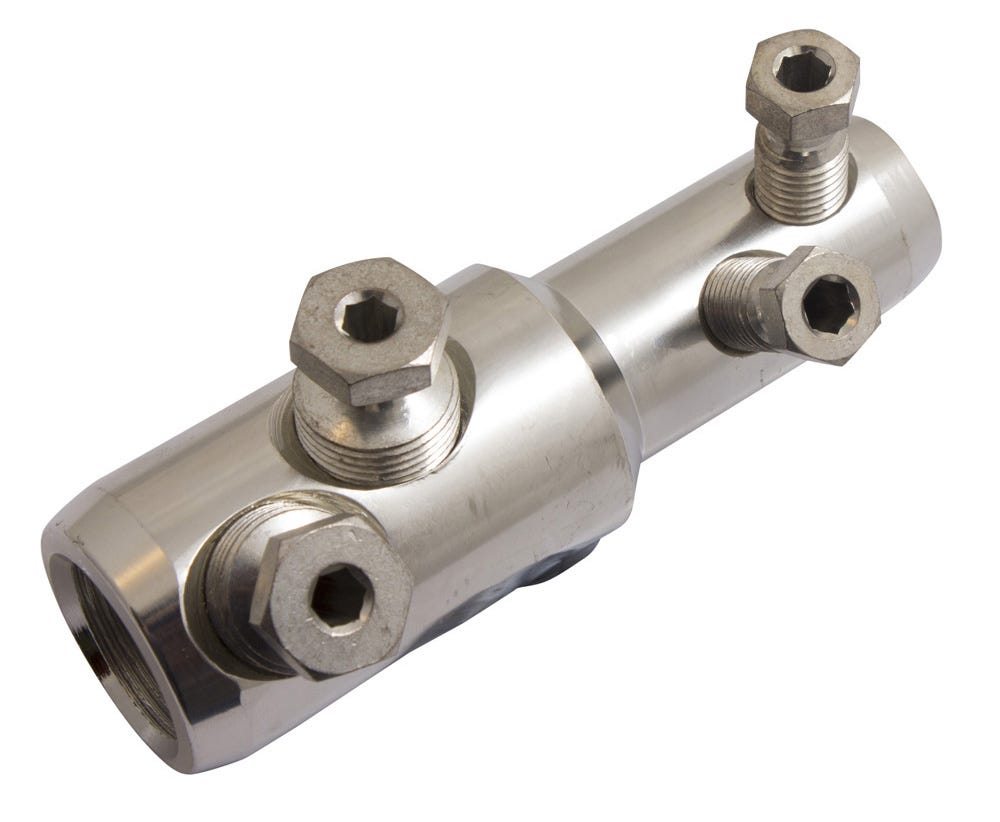

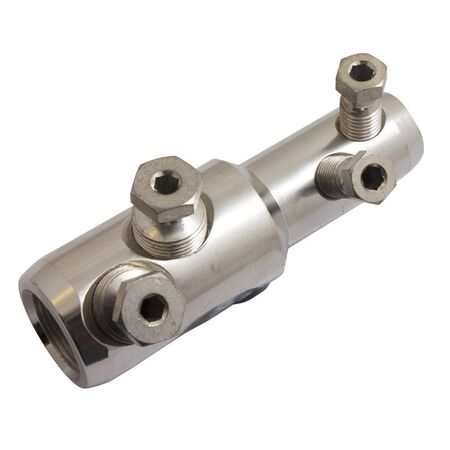

Bolted Al Link 240/95mm2 | Low Voltage Up to 1000V | Shear Bolt Technology | Tin Plated | @Each of 1 | by Cabac
The Bolted Al Link 240/95mm2 is designed for low voltage applications up to 1000 volts, making it ideal for solid and stranded aluminium or copper conductors. With proven shear bolt technology and a tin-plated finish, it ensures a secure and low-resistance connection, perfect for residential, commercial, and industrial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Suitable for low voltage applications up to 1000 volts
- Compatible with solid and stranded, sector or circular aluminium or copper conductors
- Manufactured from high strength aluminium alloy, tin plated
- Shear bolt technology ensures correct torque and secure connection
- Grooved inner barrel surface breaks oxide layers for low resistance connection
- Conforms to AS4325 standard
- Dimensions (H x L x W): 30mm x 240mm x 95mm
- Weight: 0.3 kg
Key Features
- Tin plated - designed to be bolted to copper or aluminium solid or stranded, sector or circular connectors
- Proven shear bolt technology for the perfect connection
- Grooved surface on inner wall breaks conductor oxide layers for low resistance connection
- Specially chamfered to eliminate sharp corners
- Simple installation eliminating the need for crimping tools
Professional Installation Requirements
- Installation requires only an Allen key; however, professional installation by a qualified electrician is recommended to ensure compliance and safety.
Applications
- Low voltage electrical connections up to 1000 volts
- Suitable for solid and stranded, sector or circular aluminium or copper conductors
- Electrical power connectivity in residential, commercial, and industrial installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Tin plating allows for mixed conductor use, reducing material waste
- Durable aluminium alloy construction extends product life and reduces replacement frequency
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Bolted Aluminium Reducing Link 240/95mm2 is available for immediate purchase, ideal for low voltage electrical connectivity in various applications.
