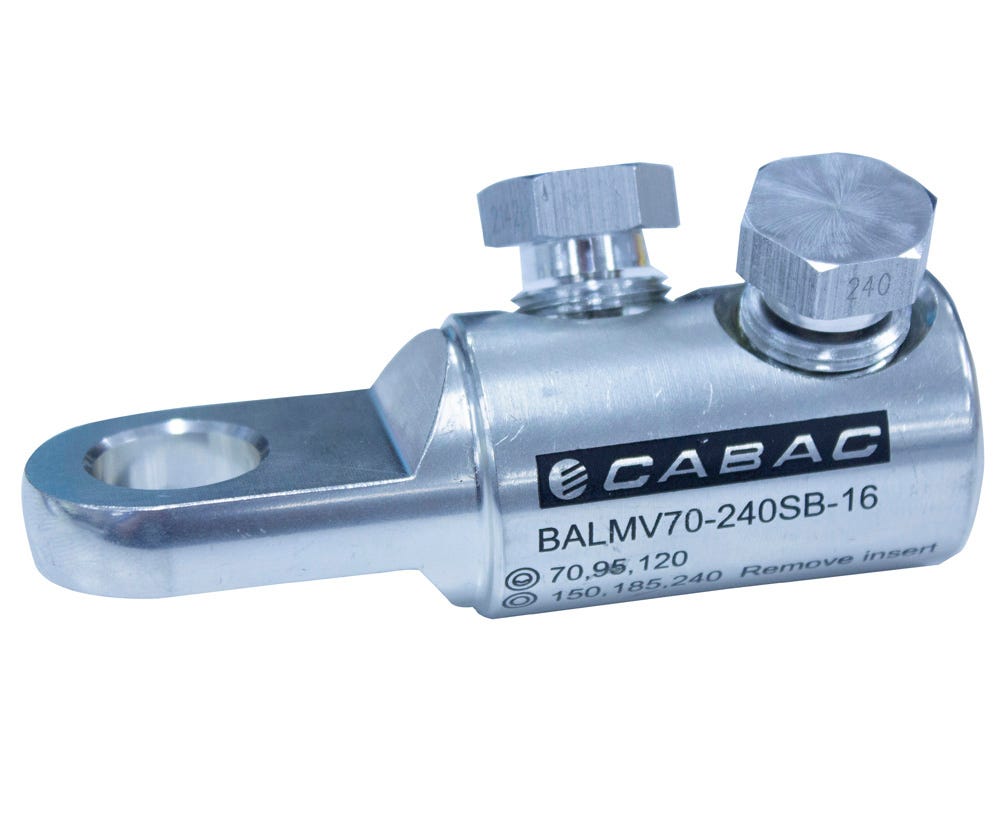

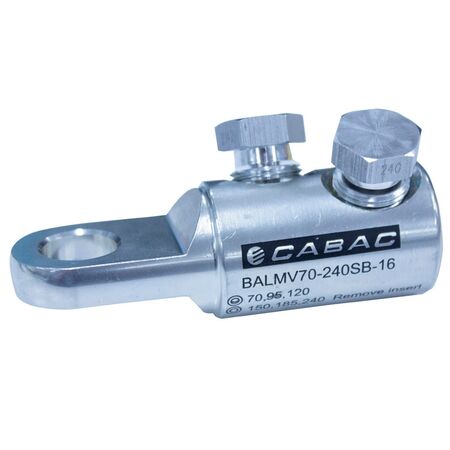

Bolted Al Lug 240-95mm2 | Up to 1000V | Shear Bolt Technology | Tin Plated | @EA of 1 | by Cabac
The Bolted Al Lug 240-95mm2 is designed for low voltage electrical connections up to 1000 volts, compatible with both solid and stranded aluminium or copper cables. Featuring proven shear bolt technology and a grooved inner surface for low resistance connections, this lug is perfect for industrial and commercial applications, ensuring secure and reliable connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage rating: Up to 1000 volts
- Conductor compatibility: Solid and stranded, sector or circular aluminium or copper cables
- Material: High strength aluminium alloy, tin plated
- Connection method: Shear bolt technology with grooved inner barrel surface
- Installation tool: Allen key required
- Designed to break oxide layers for low resistance connection
- Dimensions (H x L x W): 20mm x 120mm x 50mm
- Weight: 0.3 kg
Key Features
- Tin plated for compatibility with copper and aluminium conductors
- Proven shear bolt technology ensures perfect torque and connection
- Grooved inner surface breaks oxide layers for low resistance connection
- Suitable for sector or circular conductors, both solid and stranded
- Chamfered edges to eliminate sharp corners
- Installation requires only an allen key
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure correct torque and secure connection using shear bolt technology.
Applications
- Low voltage electrical connections up to 1000 volts
- Suitable for solid and stranded aluminium or copper cables
- Electrical power connectivity in industrial and commercial installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Tin plating allows for mixed conductor use reducing material waste
- Durable aluminium alloy construction extends product life and reduces replacement frequency
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Bolted Aluminium Lug 240-95mm2 is available for immediate purchase, ideal for low voltage electrical connectivity in industrial and commercial settings.
