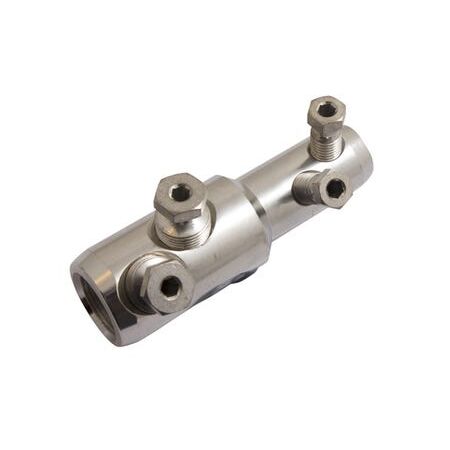

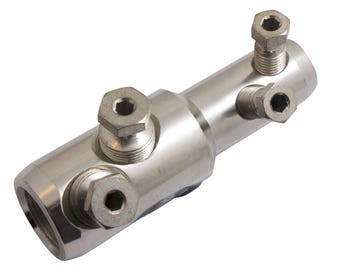

Bolted Aluminium Link 240-95/150 | 20mm Bolt Diameter | 4 Bolts | Tin Plated by Cabac
Cabac Bolted Aluminium Reducing Link designed for low voltage applications up to 1000 volts, providing reliable connections for aluminium and copper conductors with easy installation and superior performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bolted Al Link 240-95/150-50mm2
Brand: Cabac
SKU: BALK240/150
Alternatively Known As: Bolted Aluminium Link, Aluminium Reducing Link, Shear Bolt Aluminium Connector, LV Aluminium Link, Tin Plated Aluminium Link
Technical Specifications
- Conductor Range: 95-240mm² / 50-150mm²
- Bolt Diameter: 20mm
- Number of Bolts: 4
- Conductive Material: 99.6% pure Aluminium
- Tensile Strength: 120 MPa
- Set Screw Material: Brass alloy tin plated
- Shear Head Bolts: Brass alloy tin plated
- Operating Temperature Range: -20 to +140°C
- Suitable for solid and stranded, sector or circular aluminium or copper conductors
- Tested to AS/NZS 4325 Part 1
- Dimensions (H x L x W): 50mm x 240mm x 150mm
- Weight: 1.5 kg
Key Features
- Simple installation eliminating the need for crimping tools
- Grooved inner surface of barrel breaks oxide layers for low resistance connection
- Tin plated link suitable for copper and aluminium conductors
- Specially chamfered to eliminate sharp corners
- Proven shear bolt technology for perfect torque and connection
Professional Installation Requirements
- Installation requires only an allen key; recommended to be installed by qualified electrical professionals to ensure proper torque and connection integrity.
Applications
- Low voltage electrical connections up to 1000 volts
- Suitable for solid and stranded, sector or circular aluminium or copper conductors
- Electrical power connectivity in industrial and commercial installations
Standards & Compliance
- AS/NZS 4325 Part 1
Environmental Benefits
- Tin plating allows mixing of conductor materials reducing material waste
- Durable aluminium alloy construction extends product life and reduces replacement frequency
Warranty Information
Warranty details available upon request; product tested to AS4325 standards in CABAC's NATA laboratory.
Available Now
The Cabac Bolted Aluminium Reducing Link 240-95/150-50mm2 is available for immediate purchase, ideal for low voltage electrical connectivity in industrial and commercial applications.
