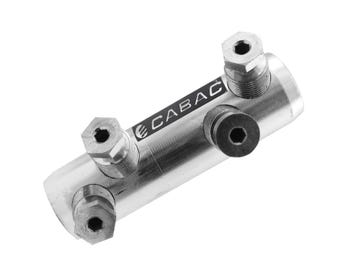

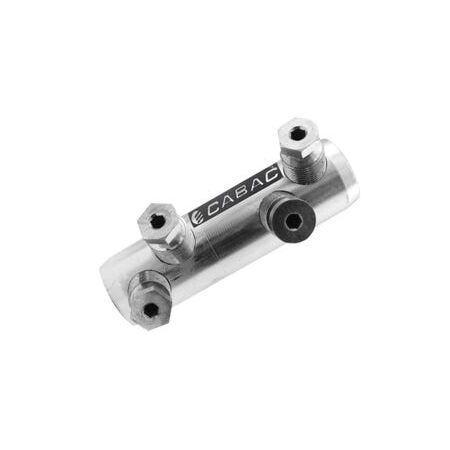

Bolted Aluminium Link 240-95mmsq | 95-240 mm² Conductor Range | Shear Bolt Technology | Easy Installation by Cabac
The Cabac Bolted Aluminium Link 240-95mmsq is designed for low voltage applications up to 1000 volts, providing a reliable and easy-to-install connection for aluminium and copper conductors using shear bolt technology.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bolted Al Link 240-95mmsq
Brand: Cabac
SKU: BALK240
Alternatively Known As: Bolted Aluminium Connector, Aluminium Cable Link, Shear Bolt Aluminium Link, LV Aluminium Link
Technical Specifications
- Conductor Range: 95-240 mm²
- Bolt Diameter: 20 mm
- Number of Bolts: 4
- Conductive Material: Aluminium 99.6% pure
- Tensile Strength: 120 MPa
- Set Screw Material: Brass alloy tin plated
- Shear Head Bolts: Brass alloy tin plated
- Operating Temperature Range: -20 to +140 °C
- Dimensions (H x L x W): 40mm x 200mm x 150mm
- Weight: 0.5 kg
Key Features
- Simple installation eliminating the need for crimping tools
- Grooved inner surface of barrel breaks conductor oxide layers for low resistance connection
- Specially chamfered to eliminate sharp corners
- Tin plated link suitable for copper and aluminium conductors
- Proven shear bolt technology for perfect connection with correct torque
- Requires only an allen key for installation
Professional Installation Requirements
- Installation requires only an allen key; recommended to be installed by a qualified electrical professional to ensure proper torque and connection integrity.
Applications
- Low voltage electrical connections up to 1000 volts
- Suitable for solid and stranded, sector or circular aluminium or copper conductors
- Electrical power connectivity in industrial and commercial installations
Standards & Compliance
- AS/NZS 4325 Part 1
Environmental Benefits
- Tin plating allows mixing of conductor materials reducing material waste
- Durable aluminium alloy construction extends product life and reduces replacement frequency
Warranty Information
Warranty details available upon request; product tested to AS4325 standards in CABAC's NATA laboratory.
Available Now
The Cabac Bolted Aluminium Link 240-95mmsq is available for immediate purchase, ideal for low voltage electrical connectivity in industrial and commercial applications.
