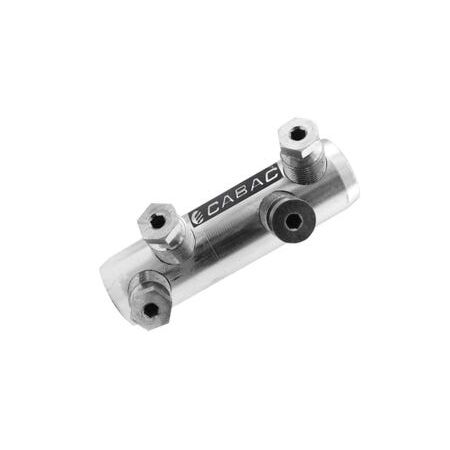

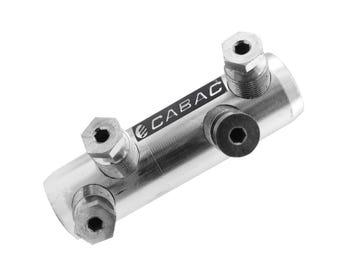

Bolted Aluminium Link 95-16mm² | 4 Bolts & 12mm Diameter | Low Resistance Connection | -20 to +140°C by Cabac

BRAND: CABAC
SKU: BALK95
$132.50 List price: $160.40
+ −
30 Days Return Delivery Options
The Cabac Bolted Aluminium Link 95-16mm2 is designed for low voltage applications up to 1000 volts, providing a reliable and easy-to-install connection for aluminium and copper conductors using shear bolt technology.

Product Name/Title: Bolted Al Link 95-16mm2

Brand: Cabac

SKU: BALK95

Alternatively Known As: Bolted Aluminium Connector, Aluminium Cable Link, Shear Bolt Aluminium Link, LV Aluminium Link Connector

Technical Specifications
  • Conductor Range: 16-95 mm²
  • Bolt Diameter: 12 mm
  • Number of Bolts: 4
  • Conductive Material: 99.6% pure Aluminium
  • Tensile Strength: 120 MPa
  • Set Screw Material: Brass alloy tin plated
  • Shear Head Bolts: Brass alloy tin plated
  • Operating Temperature Range: -20 to +140 °C
  • Suitable for solid and stranded, sector or circular aluminium or copper conductors
  • Installation requires only an allen key
  • Dimensions (H x L x W): 20mm x 150mm x 120mm
  • Weight: 0.3 kg
Key Features
  • Simple installation eliminating the need for crimping tools
  • Grooved inner surface of barrel breaks oxide layers for low resistance connection
  • Specially chamfered to eliminate sharp corners
  • Tin plated link suitable for copper and aluminium conductors
  • Proven shear bolt technology for perfect torque and connection
Professional Installation Requirements
  • Installation should be performed by a qualified electrician using an allen key to ensure correct torque and secure connection.
Applications
  • Low voltage electrical connections up to 1000 volts
  • Suitable for solid and stranded, sector or circular aluminium or copper conductors
  • Electrical power connectivity in residential, commercial, and industrial installations
Standards & Compliance
  • AS/NZS 4325 Part 1
Environmental Benefits
  • Tin plating allows mixing of conductor materials reducing material waste
  • Durable aluminium alloy construction extends product life and reduces replacement frequency
Warranty Information

Warranty details available upon request; product tested to AS4325 standards in CABAC's NATA laboratory.

Available Now

The Cabac Bolted Aluminium Link 95-16mm2 is available for immediate purchase, ideal for low voltage electrical connectivity in various applications.
