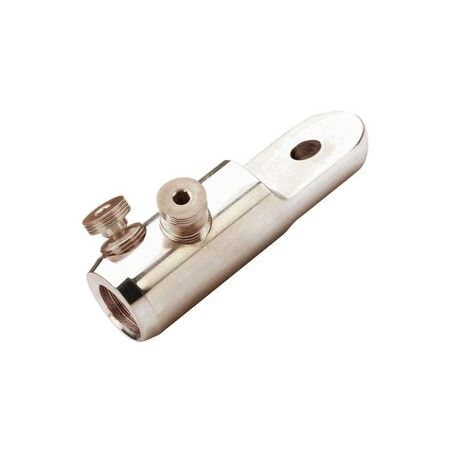

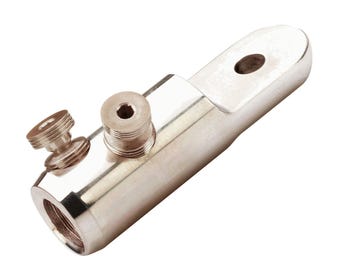

Bolted Aluminium Lug 150-50mm² | 99.6% Pure Aluminium | Shear Bolt Technology | Tin Plated by Cabac
The Cabac Bolted Al Lug 150-50mm2 is a tin-plated aluminium lug designed for low voltage applications up to 1000 volts, providing a reliable and easy-to-install connection for aluminium and copper conductors using shear bolt technology.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bolted Al Lug 150-50mm2
Brand: Cabac
SKU: BAL150-12
Alternatively Known As: Aluminium Bolted Lug, Shear Bolt Aluminium Lug, Tin Plated Aluminium Lug, Low Voltage Aluminium Lug
Technical Specifications
- Conductor Range: 50-150 mm²
- Conductor Bolt Diameter: 16 mm
- Conductive Material: 99.6% pure Aluminium
- Set Screw Material: Brass alloy tin plated
- Operating Temperature Range: -20 to +140 °C
- Tensile Strength: 20 MPa
- Shear Head Bolts: Brass alloy tin plated
- Designed for low voltage applications up to 1000 volts
- Suitable for solid and stranded, sector or circular aluminium or copper cables
- Dimensions (H x L x W): 20mm x 120mm x 50mm
- Weight: 0.2 kg
Key Features
- Simple bolt design using proven shear bolt technology for perfect connection
- Grooved inner surface of lug barrel breaks oxide layers for low resistance interface
- Tin plated for use with both copper and aluminium conductors
- Chamfered edges to eliminate sharp corners
- Installation requires only an allen key
- Compatible with standard A/F 28.4 hex crimp die (HT-240/300AL)
Professional Installation Requirements
- Installation requires only an allen key; recommended to be installed by a qualified electrician to ensure proper torque and connection integrity.
Applications
- Low voltage electrical connections up to 1000 volts
- Suitable for solid and stranded, sector or circular aluminium or copper cables
- Electrical power connectivity in residential, commercial, and industrial installations
Standards & Compliance
- Complies with AS/NZS 4325 Part 1 for low voltage electrical connectors
Environmental Benefits
- Enables efficient electrical connections reducing energy loss
- Tin plating allows mixing of conductor materials, reducing material waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Bolted Al Lug 150-50mm2 is available for immediate purchase, ideal for low voltage electrical connectivity in residential, commercial, and industrial applications.
