Bolted Aluminium Lug 95-16mm2 | Low Voltage Up to 1000V | Shear Bolt Technology | Tin Plated by Cabac

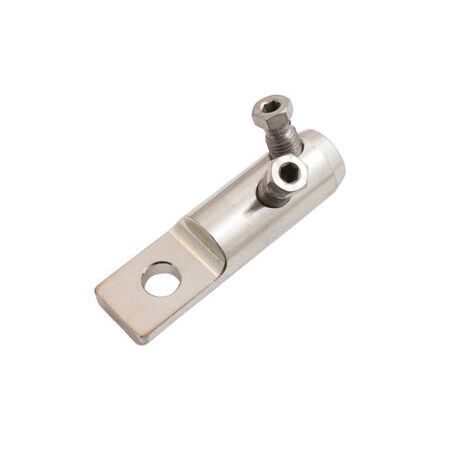

The Cabac Bolted Aluminium Lug 95-16mm2 is designed for low voltage applications up to 1000 volts, providing a reliable and easy-to-install connection for aluminium and copper cables using shear bolt technology.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bolted Al Lug 95-16mm2
Brand: Cabac
SKU: BAL95-12
Alternatively Known As: Aluminium Bolted Lug, Shear Bolt Aluminium Lug, Tin Plated Aluminium Lug, Low Voltage Aluminium Connector
Technical Specifications
- Conductive Material: Aluminum 99.6% pure
- Set Screw Material: Brass alloy tin plated
- Operating Temperature: -20°C to 140°C
- Tensile Strength: 20 MPa
- Shear Head Bolts: Brass alloy tin plated
- Designed for low voltage applications up to 1000 volts
- Suitable for solid and stranded, sector or circular aluminium or copper cables
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.1 kg
Key Features
- Simple bolt design using proven shear bolt technology for perfect connection
- Grooved inner surface of lug barrel breaks oxide layers for low resistance interface
- Tin plated for use with both copper and aluminium conductors
- Chamfered edges to eliminate sharp corners
- Installation requires only an allen key
Professional Installation Requirements
- Installation requires only an allen key; recommended to be installed by a qualified electrician to ensure proper torque and connection.
Applications
- Low voltage electrical connections up to 1000 volts
- Suitable for solid and stranded, sector or circular aluminium or copper cables
- Electrical and power connectivity in residential, commercial, and industrial settings
Standards & Compliance
- Complies with AS/NZS 4325 Part 1 for low voltage electrical connectors
Environmental Benefits
- Enables efficient electrical connections reducing energy loss
- Tin plating allows mixing of conductor materials, reducing material waste
Warranty Information
Warranty details available upon request; test reports available.
Available Now
The Cabac Bolted Aluminium Lug 95-16mm2 is available for immediate purchase, ideal for low voltage electrical connectivity in residential, commercial, and industrial applications.
