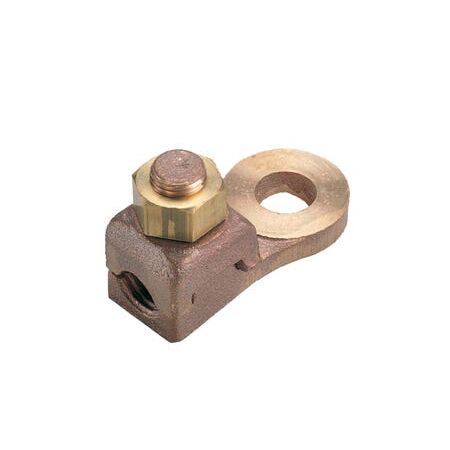

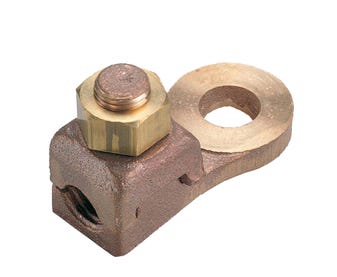

Bolted Copper Alloy Lug 150-185mm² | High Conductivity | Reusable Design | Quick Installation by Cabac
Cabac Bolted Copper Alloy Lug 150-185mm2 offers a reliable and reusable solution for making quick and secure electrical connections on normal and flexible conductors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bolted Copper Alloy Lug 150-185mm2
Brand: Cabac
SKU: CABL6
Alternatively Known As: Copper Lug, Bolted Copper Connector, Copper Cable Lug, Electrical Copper Lug
Technical Specifications
- Conductive material: Copper alloy
- Operating temperature: -55°C to 100°C
- Conductor size: 150-185 mm²
- Building wire stranding No/Dia: 37/2.03, 37/2.25, 37/2.52
- Stud size: 16 mm
- Barrel with internal corrugations for improved current transfer
- Dimensions (H x L x W): 9mm x 76mm x 38mm
- Weight: 0.2 kg
Key Features
- Reusable multiple times
- Machined palms for bolting on either surface
- Quick and easy installation with a single hex nut
- Manufactured from high conductivity copper alloy
- Barrels have internal corrugations to assist current transfer
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper connection and compliance with electrical standards.
Applications
- Electrical connections for normal and flexible conductors
- Temporary or permanent electrical connections in power systems
- Suitable for use in industrial and commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reusable design reduces waste and environmental impact
- High conductivity copper alloy improves energy efficiency in electrical connections
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Bolted Copper Alloy Lug 150-185mm2 is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable conductor connections.
