Trade Discount 17%

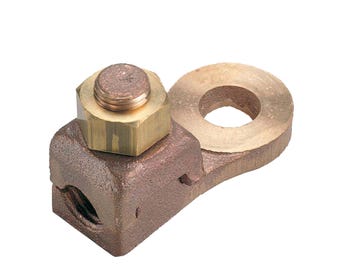

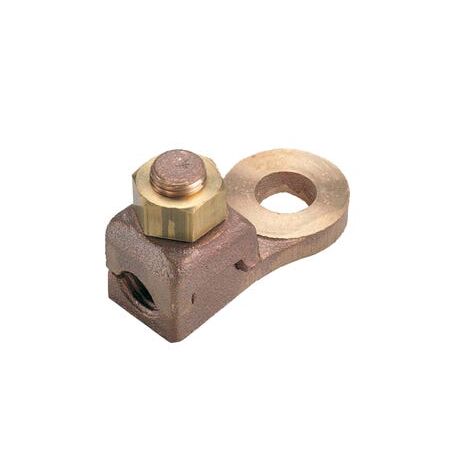

Bolted Copper Alloy Lug 25-35mm² | High Conductivity | Reusable Design | Easy Connection by Cabac
Cabac Bolted Copper Alloy Lug 25-35mm2 offers a reliable and reusable solution for making quick and secure electrical connections on normal and flexible conductors, made from high conductivity copper alloy.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bolted Copper Alloy Lug 25-35mm2
Brand: Cabac
SKU: CABL3
Alternatively Known As: Copper lug, bolted copper connector, copper cable lug, electrical copper lug, copper terminal lug
Technical Specifications
- Conductive material: Copper alloy
- Operating temperature: -55°C to 100°C
- Conductor size: 25-35 mm²
- Building wire stranding: 19 strands of 1.35 mm or 19 strands of 1.53 mm diameter
- Stud size: 10 mm
- Barrel with internal corrugations for improved current transfer
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.1 kg
Key Features
- Quick and easy connection for normal or flexible conductors
- Reusable multiple times
- Machined palms on top and bottom for bolting on either surface
- Manufactured from high conductivity copper alloy
- Barrels have internal corrugations to assist current transfer
- Single hex nut tightening for secure installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper connection and compliance with electrical standards.
Applications
- Electrical connections for normal and flexible conductors
- Temporary or permanent electrical connections in power systems
- Suitable for use in residential, commercial, and industrial electrical wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reusable design reduces waste and environmental impact
- High conductivity copper alloy improves energy efficiency by reducing electrical resistance
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Bolted Copper Alloy Lug 25-35mm2 is available now for immediate purchase. Ideal for electrical connectivity applications requiring reliable and reusable conductor connections.
