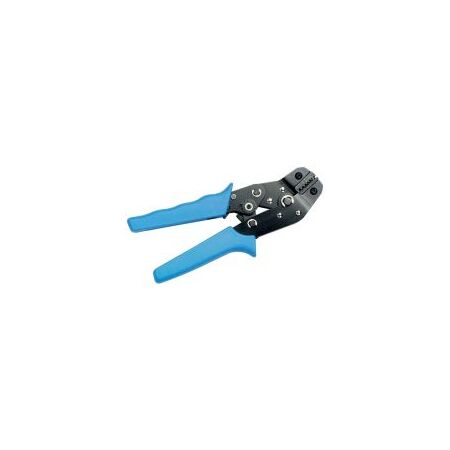

Bootlace Crimper 0.14-2.5mm² Ratchet Small Cabac
Cabac small bootlace crimper features 0.14-2.5mm² range, 7 jaw positions, serrated crimp surface, and 8-position ratchet adjustment. Ideal for fine ferrules.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bootlace Crimper, Bootlace Ferrule Crimper, Wire End Ferrule Crimping Tool, Small Ratchet Ferrule Crimper
Technical Specifications
- Model: HNKE3
- Crimping Range: 0.14–2.5 mm²
- Jaw Positions: 0.14, 0.25, 0.34, 0.5, 0.75, 1.0, 1.5 and 2.5 mm²
- Crimp Profile: Serrated or ribbed surface
- Pressure Adjustment: 8-position ratchet adjustment
- Tool Length: 195 mm
- Tool Weight: 343 g
- Tool Type: Bootlace ferrule crimper
- Dimensions (H x L x W): 30mm x 195mm x 60mm
- Weight: 0.343 kg
Key Features
- Designed for ultra-small bootlace ferrules
- Seven jaw positions covering 0.14–2.5 mm² ferrules
- Serrated crimp surface improves ferrule grip and locking
- Ratchet operation promotes consistent crimping pressure
- Eight-position pressure adjustment compensates for different ferrule sizes and tool wear
- Suitable for fine-wire electrical termination work
Applications
- Crimping bootlace ferrules onto fine-stranded conductors
- Electrical control panels and switchboards
- Terminal block and DIN rail wiring
- Industrial, commercial and residential electrical wiring
- Fine-wire termination in instrumentation and control systems
Environmental Benefits
- Reusable hand tool with a long service life, reducing reliance on disposable termination equipment
- Supports reliable electrical terminations, helping reduce rework and replacement of incorrectly crimped ferrules
- Durable construction can reduce tool replacement and associated material waste
Warranty Information
CABAC warranty terms provide repair or replacement for defective goods for 12 months from the date of supply, subject to correct use and excluding misuse, neglect and incorrect installation. Australian Consumer Law rights continue to apply.
Available Now
Available through CABAC and authorised Australian electrical distributors; confirm current stock and lead time before ordering.
