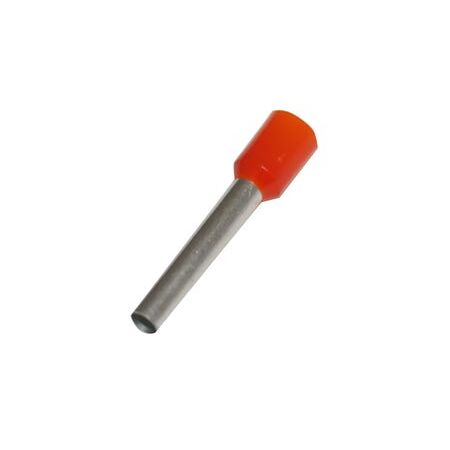

Bootlace Ferrule 4mm2 Orange Cabac
Cabac insulated bootlace ferrule, 4mm2, Orange, copper, 600V. Ideal for fine-stranded conductor termination.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal Conductor Size: 4mm²
- Material: Copper sleeve with nylon insulation
- Colour: Orange
- Temperature Range: -55°C to +105°C
- Plating Thickness: 0.003mm
- Pack Quantity: 100
- Compatible Crimp Tools: HNKE12, HNKE5, HNKE9, HNKE10, HNKE11, HNKE7
- Dimensions (H x L x W): 2.8mm x 26mm x 4.8mm
- Weight: 0.1 kg
Key Features
- Thin-walled copper sleeve crimped securely to conductor strands
- Prevents conductor strands from straying and breaking under terminal screws
- Halogen free and RoHS compliant for environmental safety
- Suitable for temperatures from -55°C to +105°C
- Compatible with HNKE range of crimp tools for optimal termination
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical wiring termination for stranded copper conductors
- Suitable for use in electrical panels, machinery, and control systems
- Ideal for use with flexible copper cables in industrial and commercial electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce toxic emissions in case of fire
- RoHS compliant, ensuring reduced hazardous substances
- Durable copper and nylon construction promotes long product life and reduces waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Cabac Boot Lace Pin 4mm2 Orange L18 Halogen Free is available now for immediate purchase. Ideal for electrical wiring termination in residential, commercial, and industrial applications.
FAQ
Q: What conductor size is this bootlace ferrule designed for?
A: It is designed for 4mm2 fine-stranded copper conductors.
Q: What is the voltage rating of this bootlace ferrule?
A: This Cabac insulated bootlace ferrule is rated for applications up to 600V.
Complete your cable preparation with a bootlace ferrule strip for faster and more consistent ferrule handling.
Use a 4mm2 orange bootlace ferrule from Wattmaster when an alternative insulated ferrule is required for similar conductor sizes.
Pair this installation with an insulated pin connector for secure termination of compatible electrical conductors.
