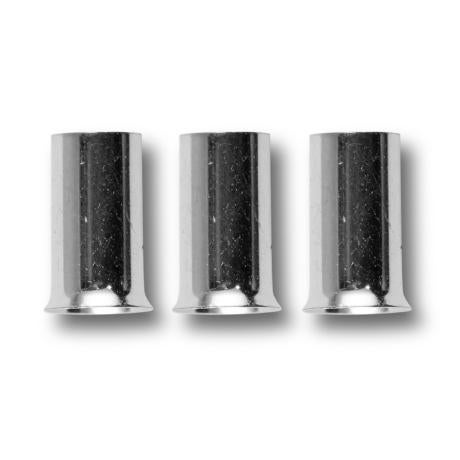

Bootlace Terminal Non-Insulated 16mm² | Electro Grade Copper | Flared End Design | @Each by Wattmaster
Bootlace Terminal Non-Insulated 16mm² is crafted from electro grade copper, ensuring high conductivity and precise terminations for multi-stranded cables. With a flared end design for easy cable entry, these terminals are perfect for industrial, commercial, and automotive wiring applications, reducing the risk of short-circuiting and stray strands.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bootlace Terminal Non-Insulated 16mm² | Electro Grade Copper | Flared End Design | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCBLU16/100
Alternatively Known As: Non-Insulated Bootlace Terminal, Copper Bootlace Terminal, Electrical Bootlace Connector
Technical Specifications
- Material: Electro grade copper
- Finish: Electro tinned
- Cable Size: 16mm²

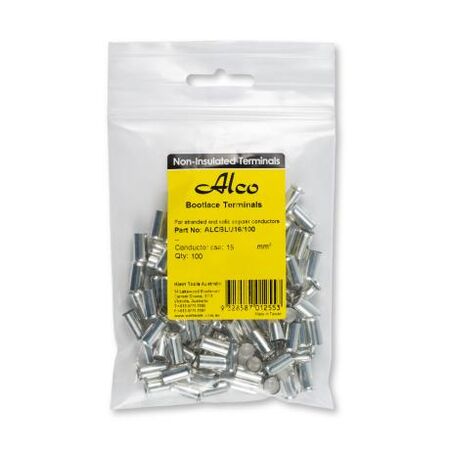

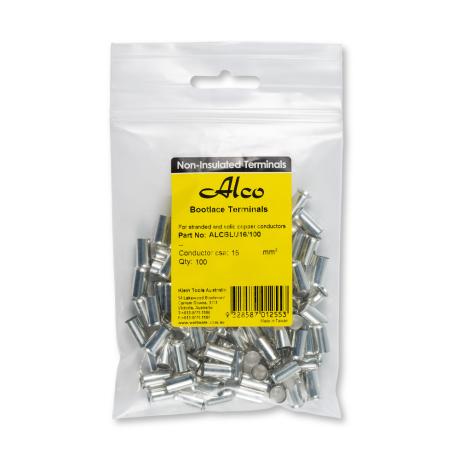

- Pack Quantity: 100 terminals
- Type: Non-insulated bootlace terminal
- Design: Flared end for easy cable entry
- Dimensions (H x L x W): 10mm x 70mm x 50mm
- Weight: 0.2 kg
Key Features
- Non-insulated electro grade copper bootlace terminals
- Provide precise terminations to multi-stranded cable
- Reduce the possibility of short-circuiting and ensure no strands stray
- Electro tinned finish for high conductivity
- Flared end for easy cable entry
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Electrical wiring terminations for multi-stranded cables
- Industrial and commercial electrical installations
- Automotive and machinery wiring connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electro tinned finish enhances durability, reducing replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
Wattmaster Bootlace Terminal Non-Insulated 16mm² 100 Pack is available for immediate purchase, ideal for electrical wiring and termination applications.
