Trade Discount 18%

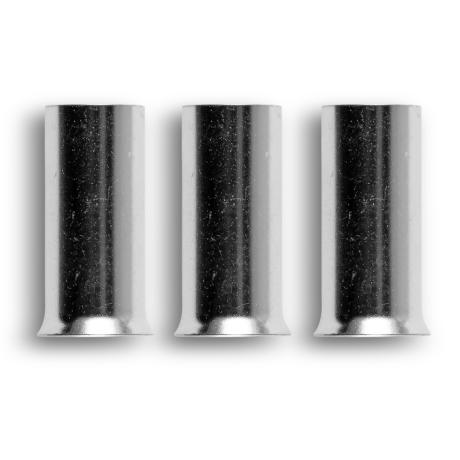

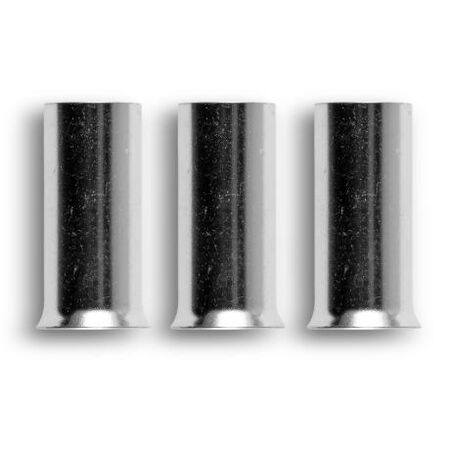

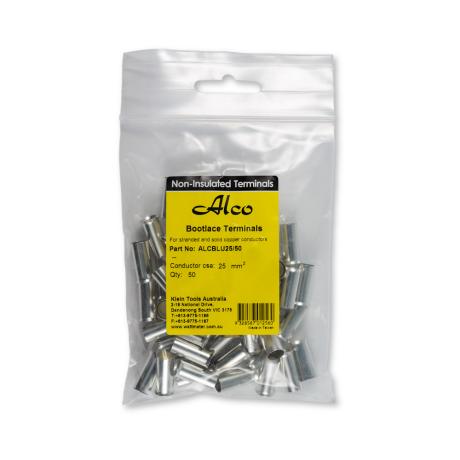

Bootlace Terminal Non-Insulated 25mm² | Electro Grade Copper | Flared End Design | @Each of 50 | by Wattmaster
Bootlace Terminal Non-Insulated 25mm² is designed for precise terminations of multi-stranded cables, featuring an electro grade copper construction with an electro tinned finish for high conductivity. Ideal for both industrial and residential electrical installations, these terminals reduce the risk of short-circuiting and ensure secure connections, making them perfect for control panels, switchboards, and automotive wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bootlace Terminal Non-Insulated 25mm² | Electro Grade Copper | Flared End Design | @Each of 50 | by Wattmaster
Brand: Wattmaster
SKU: ALCBLU25/50
Alternatively Known As: Non-Insulated Bootlace Terminal, Copper Bootlace Terminal, Electrical Bootlace Connector
Technical Specifications
- Terminal Type: Non-insulated bootlace terminal
- Material: Electro grade copper with electro tinned finish
- Cable Size Compatibility: 25mm²
- Pack Quantity: 50 pieces
- Design: Flared end for easy cable entry
- Dimensions (H x L x W): 5mm x 40mm x 10mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper bootlace terminals
- Provide precise terminations to multi-stranded cable
- Reduce the possibility of short-circuiting and ensure no strands stray
- Electro tinned finish for high conductivity
- Flared end for easy cable entry
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper termination and safety compliance.
Applications
- Electrical wiring terminations for multi-stranded cables
- Industrial and residential electrical installations
- Control panels and switchboards
- Automotive and machinery wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electro tinned finish enhances durability, reducing replacement frequency and waste.
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wattmaster Bootlace Terminal Non-Insulated 25mm² 50 Pack is available now for immediate purchase. Ideal for electrical wiring and cable termination applications.
