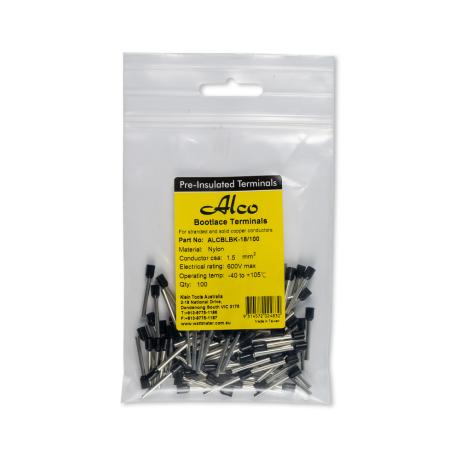

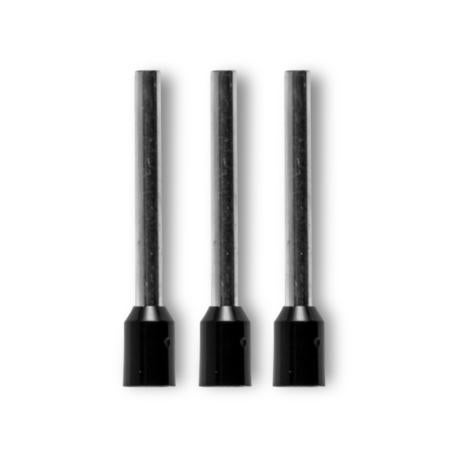

Bootlace Terminal Pre-Insulated Black 1.5mm² | 18mm Length | 600V Rated | by Wattmaster
Bootlace terminals pre-insulated in black, designed for 1.5mm² cables, ensure safe and reliable electrical connections. With a length of 18mm and a maximum voltage rating of 600V, these terminals are perfect for both industrial and residential wiring applications. Ideal for qualified electricians, they reduce the risk of short-circuiting and ensure secure terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bootlace Terminal Pre-Insulated Black 1.5mm² | 18mm Length | 600V Rated | by Wattmaster
Brand: Wattmaster
SKU: ALCBLBK-18/100
Alternatively Known As: Pre-insulated bootlace terminal, bootlace ferrule, cable end sleeve, wire end terminal
Technical Specifications
- Cable Size: 1.5mm²
- Length: 18mm
- Voltage Rating: 600V max
- Insulation Material: Polyamide
- Colour: Black
- Pack Quantity: 100 pieces
- Dimensions (H x L x W): 18mm x 18mm x 5mm
- Weight: 0.1 kg
Key Features
- Pre-insulated bootlace terminals for safe and reliable connections
- Colour-coded Polyamide insulation for easy identification
- Reduces possibility of short-circuiting and ensures no strands stray
- Suitable for 600V maximum voltage applications
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Electrical wiring terminations for multi-stranded cables
- Industrial and residential electrical installations
- Automotive and machinery wiring connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces electrical faults and waste by ensuring secure cable connections
- Durable insulation extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
Available for immediate purchase, ideal for electrical wiring and termination applications.
