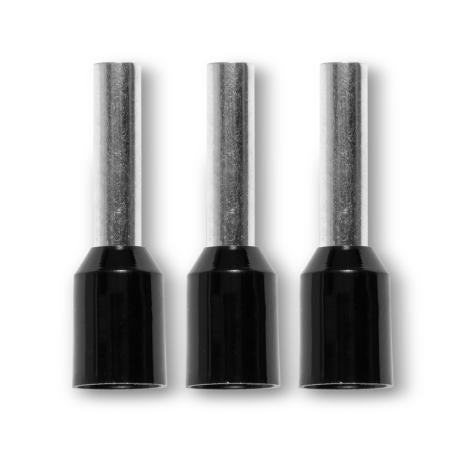

Bootlace Terminal Pre-Insulated Black 1.5mm² | 8mm Length | 600V Max Rating | @Each by Wattmaster
Bootlace terminals pre-insulated in black are perfect for precise terminations of multi-stranded cables. With a 1.5mm² cable size and 8mm length, these terminals reduce the risk of short-circuiting and ensure no stray strands. Ideal for both industrial and residential electrical installations, they comply with AS/NZS 3000 standards, making them a reliable choice for any electrician.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bootlace Terminal Pre-Insulated Black 1.5mm² | 8mm Length | 600V Max Rating | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCBLBK/100
Alternatively Known As: Pre-insulated bootlace terminal, Bootlace connector, Cable end terminal, Wire end sleeve
Technical Specifications
- Cable Size: 1.5mm²
- Length: 8mm
- Insulation: Polyamide, colour-coded black
- Voltage Rating: 600V max
- Pack Quantity: 100 pieces
- Dimensions (H x L x W): 3mm x 8mm x 8mm
- Weight: 0.1 kg
Key Features
- Pre–insulated bootlace terminals
- Provide precise terminations to multi–stranded cable
- Reduces possibility of short–circuiting and ensures no strands stray
- Colour–coded Polyamide insulation for easy identification
- 600V max rating
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Electrical wiring terminations
- Multi-stranded cable connections
- Industrial and residential electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces electrical faults and short circuits, enhancing system safety and longevity
- Durable insulation reduces waste by extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now

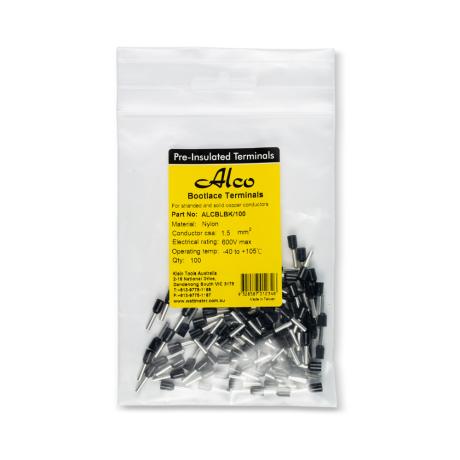

Wattmaster Bootlace Terminal Pre-Insulated Black 1.5mm² Length 8mm 100 Pack is available for immediate purchase, ideal for electrical wiring and cable termination applications.
