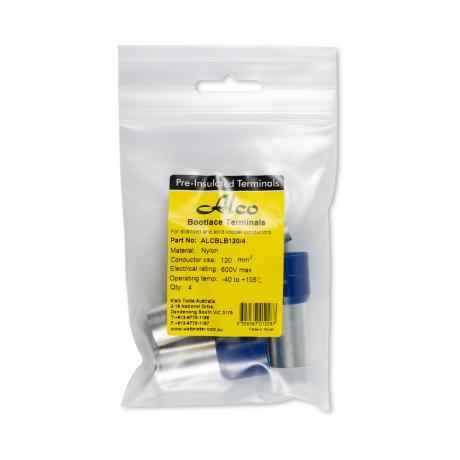

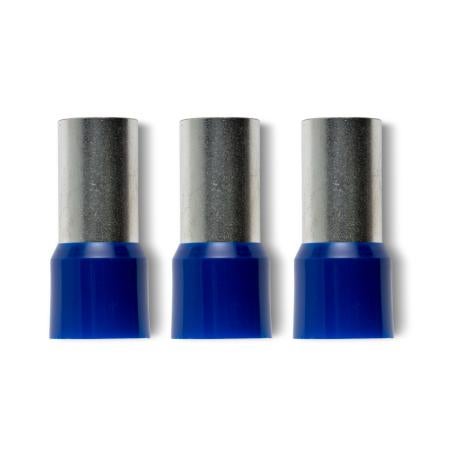

Bootlace Terminal Pre-Insulated Blue 120mm² | 27mm Length | 600V Rated | by Wattmaster
Bootlace Terminal Pre-Insulated Blue 120mm² is designed for safe and reliable electrical connections. With a length of 27mm and rated for 600V, these terminals feature colour-coded polyamide insulation for easy identification and precise terminations to multi-stranded cables. Ideal for industrial, commercial, and automotive applications, they ensure no strands stray, reducing the risk of short-circuiting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bootlace Terminal Pre-Insulated Blue 120mm² | 27mm Length | 600V Rated | by Wattmaster
Brand: Wattmaster
SKU: ALCBLB120/4
Alternatively Known As: Pre-insulated bootlace terminal, Blue bootlace connector, Cable lug terminal, Insulated wire terminal
Technical Specifications
- Cable Size: 120mm²
- Length: 27mm
- Insulation Material: Polyamide
- Voltage Rating: 600V max
- Pack Quantity: 4 terminals
- Colour: Blue
- Dimensions (H x L x W): 5mm x 27mm x 10mm
- Weight: 0.1 kg
Key Features
- Pre-insulated bootlace terminals for safe and reliable connections
- Colour-coded Polyamide insulation for easy identification
- Provides precise terminations to multi-stranded cables
- Reduces possibility of short-circuiting and ensures no strands stray
- Rated for 600V maximum voltage
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Electrical wiring terminations for multi-stranded cables
- Industrial and commercial electrical installations
- Automotive and machinery electrical connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Pre-insulated design reduces waste and improves installation efficiency
- Durable materials extend product life and reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
Available for immediate purchase, ideal for electrical wiring and termination applications in residential, commercial, and industrial settings.
