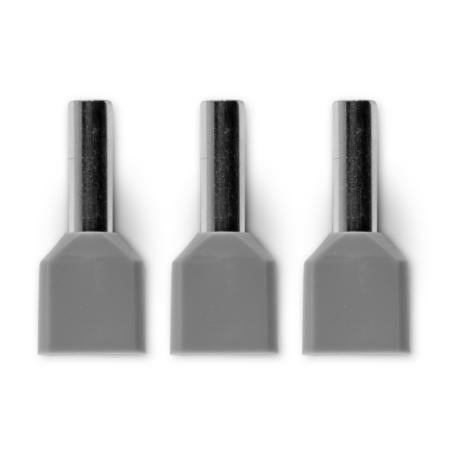

Bootlace Terminal Pre-Insulated Twin Grey 2x 4mm² | 600V Rated | Pack of 100 | by Wattmaster
Bootlace Terminal Pre-Insulated Twin Grey 2x 4mm² is designed for secure electrical connections, allowing the termination of two wires in one terminal. Ideal for both industrial and residential applications, these terminals feature colour-coded polyamide insulation for easy identification and are rated for up to 600V, reducing the risk of short-circuiting by preventing stray strands.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bootlace Terminal Pre-Insulated Twin Grey 2x 4mm² | 600V Rated | Pack of 100 | by Wattmaster
Brand: Wattmaster
SKU: ALCBLTGY4/50
Alternatively Known As: Twin Bootlace Terminal, Pre-Insulated Bootlace Connector, Electrical Wire Terminal, Twin Wire Bootlace
Technical Specifications
- Twin bootlace terminal size: 2 x 4.0 mm²
- Insulation material: Polyamide
- Voltage rating: 600V max
- Colour: Grey
- Pack quantity: 100 terminals
- Dimensions (H x L x W): 10mm x 100mm x 50mm
- Weight: 0.2 kg
Key Features
- Pre-insulated twin bootlace terminals for secure connections
- Allows termination of two wires in one terminal
- Reduces risk of short-circuiting by preventing stray strands
- Colour-coded polyamide insulation for easy identification
- Rated for up to 600V maximum voltage
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical wiring termination for multi-stranded cables
- Industrial and residential electrical installations
- Control panels and switchboards
- Automotive and machinery wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Pre-insulated design reduces waste and improves installation efficiency
- Durable materials extend product life and reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now

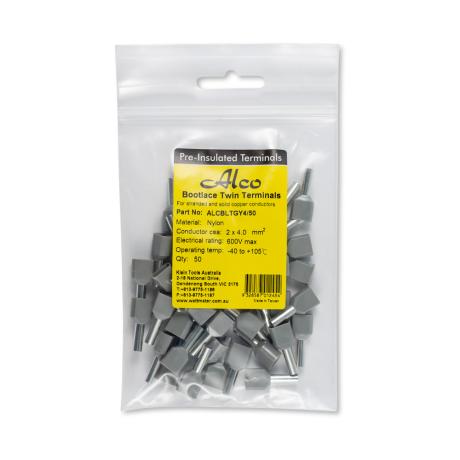

The Wattmaster Bootlace Terminal Pre-Insulated Twin Grey 2x 4mm² 100 Pack is available for immediate purchase, ideal for electrical wiring and termination applications.
