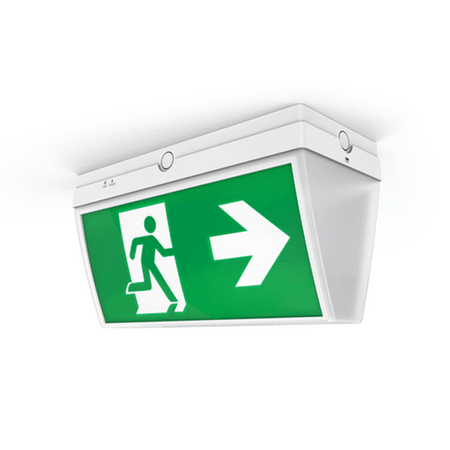

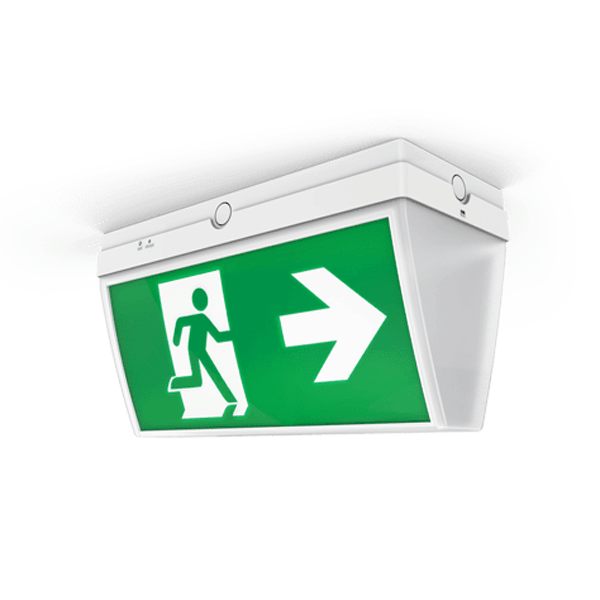

Boxit Ceiling Mounted Exit Light | Maintained Emergency Mode | 90 Minutes Duration | IP20 Rated | by Ektor
The Boxit Ceiling Mounted Exit Light is designed for reliable emergency exit signage in commercial and public spaces. Featuring a maintained emergency mode with a 90-minute duration, this light ensures safety during power outages. With a durable polycarbonate body and PMMA diffuser, it offers a viewing distance of 24 meters, making it ideal for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Exit Light, Maintained Exit Sign, Ceiling Mounted Exit Sign, Emergency Exit Signage
Technical Specifications
- IP Rating: IP20
- Body Material: Polycarbonate
- Diffuser Material: PMMA
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Maximum Wattage: 3.6 W
- Standby Power: 3.3 W
- LED Wattage: 0.95 W
- Driver Type: Fixed output, integrated
- Dimmable: No
- Wiring Type: Re-wireable terminal block (4 pin)
- Emergency Mode: Maintained
- Emergency Output Power: 950 mW
- Emergency Duration: 90 minutes
- Viewing Distance: 24 meters
- Decal Size: 340 x 150 mm
- Product Design Life: 6 years
- Dimensions (H x L x W): 150mm x 100mm x 340mm
- Weight: 1.5 kg
Key Features
- Maintained emergency mode with 90 minutes duration
- Polycarbonate body with PMMA diffuser
- Fixed output integrated driver included
- Re-wireable terminal block (4 pin) for easy installation
- Viewing distance of 24 meters
- White fitting colour with IP20 rating
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with emergency lighting standards and safety regulations.
Applications
- Commercial buildings emergency exit lighting
- Public and private facilities requiring maintained emergency lighting
- Wall and ceiling mounted emergency exit signage
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low power consumption with 3.6W maximum wattage
- Long product design life of 6 years reduces waste
- Energy-efficient LED technology
Warranty Information
5 years return to base (RTB) warranty for commercial use.
Available Now
The Ektor Boxit Ceiling Mounted Exit Light is available for immediate purchase, ideal for commercial and public building emergency exit lighting applications.
